Wagon Livery Selection

for Private Owner Mineral Wagons Decals

This page shows the range of wagon liveries I currently have available as decals for Private Owner mineral wagons. To use it to select a particular wagon livery, please click on the button below the relevant illustration. This will take you back to the main PO wagons decals page while setting the wagon livery to that you have selected. It will also set the default wagon type to that the decals are designed to fit.

To return to that page without selecting a wagon livery, please click here:

Return to Decals Page

If you want decals for a livery that is not listed here, please contact me with full details of the livery (ideally including a clear photo and/or drawing) and I will see what I can do to add it to those below, probably at no extra charge to you beyond my standard decals cost.

Where a colour is followed by a specification in parentheses, the specification is the name of the Railmatch paint colour those parts of the decals have been matched to.

Clicking on a wagon image will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up). The same browser tab/window will be used for all images you click on.

Filter and Sort Liveries

To assist with your choice, and restrict the number of wagon liveries shown below, you are welcome to use the filter options below to only display wagons that match certain characteristics, and then sort the results into an order based on selected characteristics.

Within a filter specification, the various options are combined as "OR". That is, the more options you select, the more liveries that will be displayed. The "Any" option causes all of the other options for that filter to be ignored, and has to be deselected for the other options to take effect.

However, the different filters are combined as "AND". That is, to be displayed a livery has to match both the wagon type filter AND the wagon height filter.

Filter by Owner Type:

Filter by Railway:

Filter by County:

Note: Where a livery has a list of values for location, county or railway, rather than a single value, the sort by location, county or railway will act on the complete list, primarily using the first value in the list, followed by the remaining values.

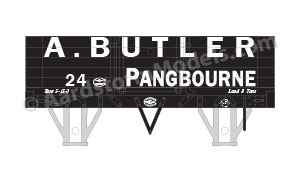

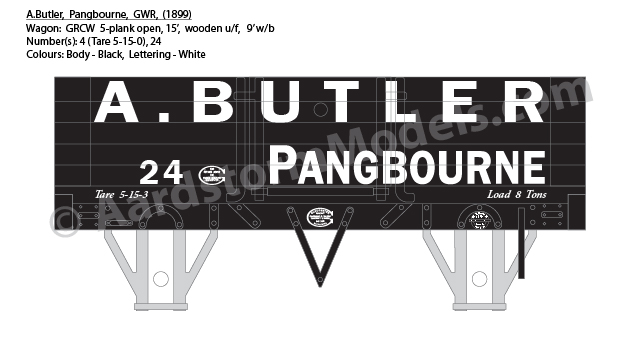

A. Butler, Pangbourne, GWR

 Owner/Operator: A. Butler
Type: Merchant Year: 1899
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Pangbourne
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 4, 24 Tare Weight(s): 5-15-0, 5-15-3
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

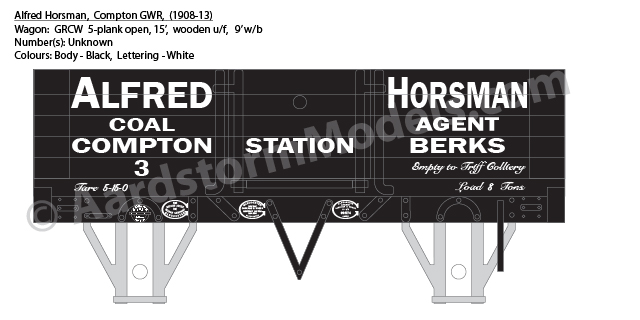

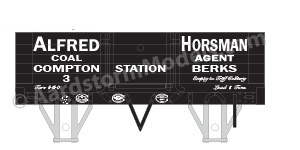

Alfred Horsman, Compton, GWR

 Owner/Operator: Alfred Horsman
Type: Merchant Year: 1908-13
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Compton
County(ies): Berkshire
Railway(s): GWR
Known Number(s): Unkown Tare Weight(s): 5-15-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

B. Turner, Oxford, GWR

 Owner/Operator: B. Turner
Type: Merchant Year: 1936
Wagon Type: Gloucester RCW 16'6 7-plank mineral
Location(s): Morris Cowley
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 16-20 Tare Weight(s): 7-0-0
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

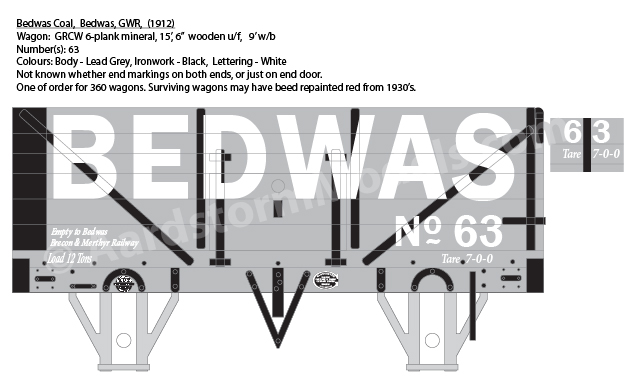

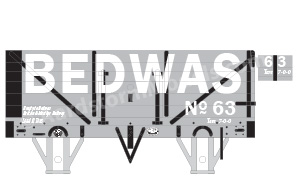

Bedwas Coal, Bedwas, GWR

 Owner/Operator: Bedwas Navigation Colliery Co Ltd
Type: Colliery Year: 1912
Wagon Type: Gloucester RCW 15'6 6-plank mineral
Location(s): Bedwas
County(ies): Monmouthshire
Railway(s): GWR
Known Number(s): 63 Tare Weight(s): 7-0-0
Body: Grey Lettering: White
Ironwork: Black Other:
Notes: Not known whether end markings on both ends, or just on end door. One of order for 360 wagons. Surviving wagons may have been repainted red from 1930’s.

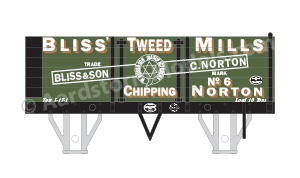

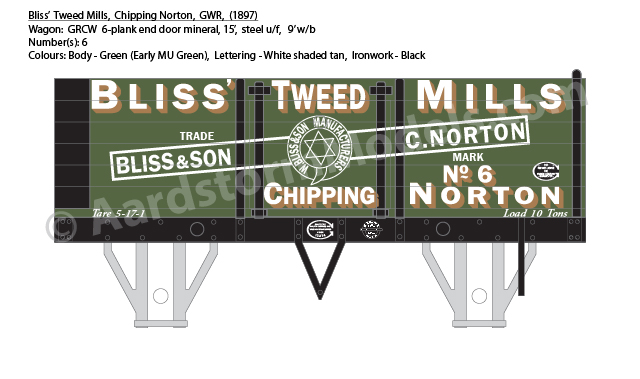

Bliss' Tweed Mills, Chipping Norton, GWR

 Owner/Operator: Bliss' Tweed Mills
Type: Merchant Year: 1897
Wagon Type: Gloucester RCW 15' 6-plank mineral
Location(s): Chipping Norton
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 6 Tare Weight(s): 5-17-1
Body: Green (Early MU Green) Lettering: White shaded Tan
Ironwork: Black Other:
Notes:

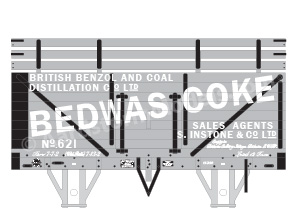

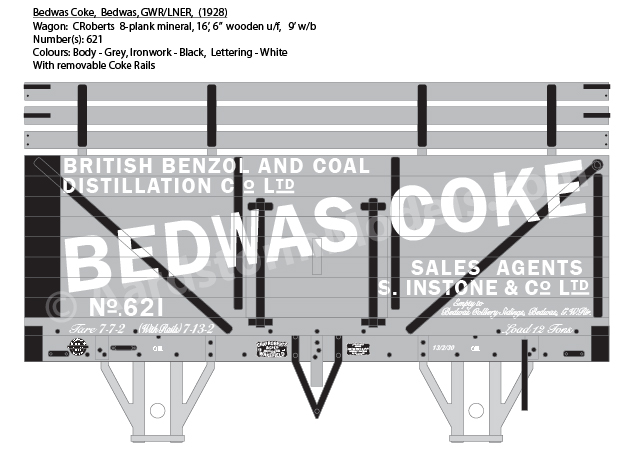

Bedwas Coke, Bedwas, GWR

 Owner/Operator: British Benzol & Coal Distillation Co Ltd
Type: Colliery Year: 1928
Wagon Type: Charles Roberts 16'6 8-plank mineral
Location(s): Bedwas
County(ies): Monmouthshire
Railway(s): GWR
Known Number(s): 621 Tare Weight(s): 7-13-2
Body: Grey Lettering: White
Ironwork: Black Other:
Notes: With removable coke rails

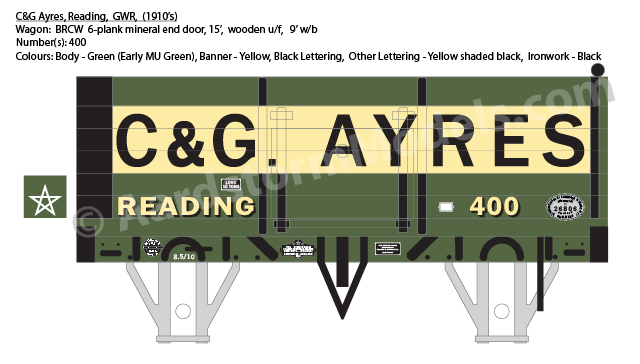

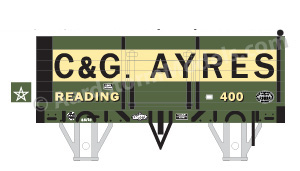

C&G Ayres, Reading, GWR

 Owner/Operator: C&G Ayres
Type: Merchant Year: 1910s
Wagon Type: Birmingham RCW 15' 6-plank mineral
Location(s): Reading
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 400 Tare Weight(s): 8.5/10
Body: Green (Early MU Green) Lettering: Black on Banner, Yellow shaded Black otherwise
Ironwork: Black Other: Yellow Banner
Notes:

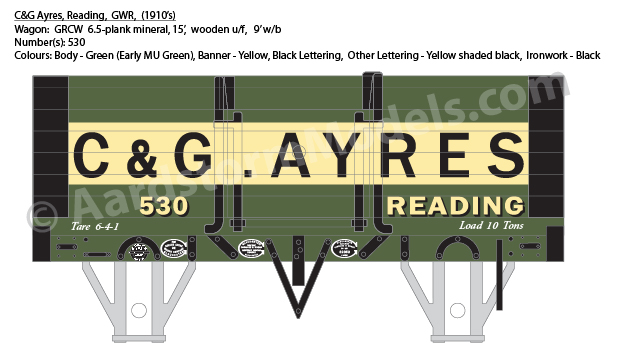

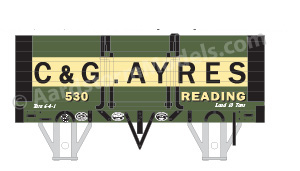

C&G Ayres, Reading, GWR

 Owner/Operator: C&G Ayres
Type: Merchant Year: 1910s
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Reading
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 530 Tare Weight(s): 6-4-1
Body: Green (Early MU Green) Lettering: Black on Banner, Yellow shaded Black otherwise
Ironwork: Black Other: Yellow Banner
Notes:

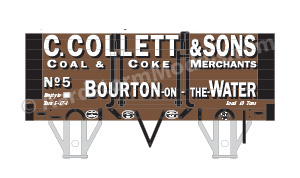

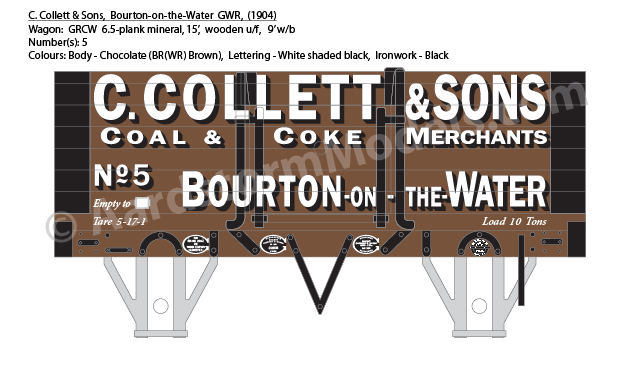

C. Collett & Sons, Bourton-on-the-Water, GWR

 Owner/Operator: C. Collett & Sons
Type: Merchant Year: 1904
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Bourton-on-the-Water
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 5 Tare Weight(s): 5-17-1
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

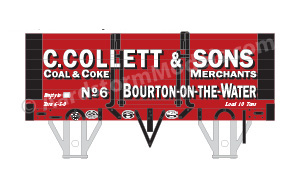

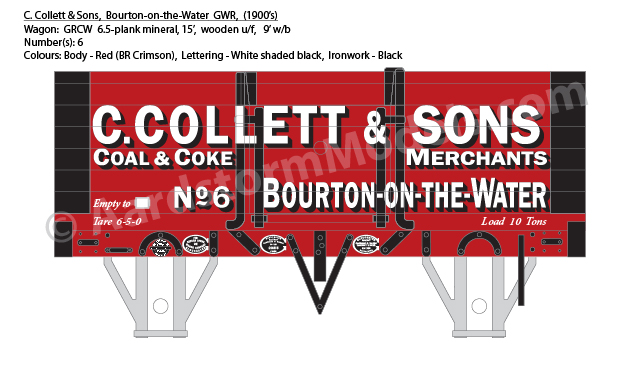

C. Collett & Sons, Bourton-on-the-Water, GWR

 Owner/Operator: C. Collett & Sons
Type: Merchant Year: 1900s
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Bourton-on-the-Water
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 6 Tare Weight(s): 6-5-0
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

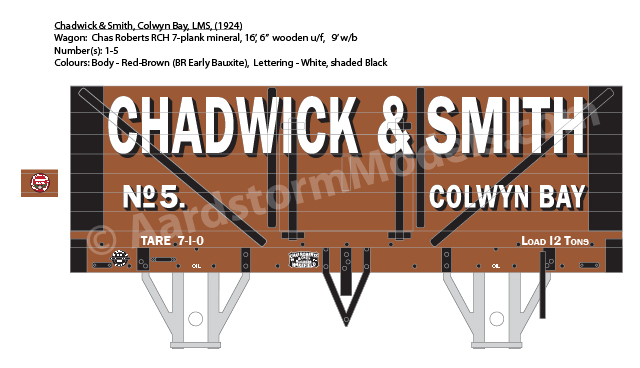

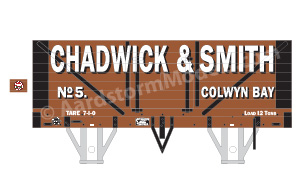

Chadwick & Smith, Colwyn Bay, LMS

 Owner/Operator: Chadwick & Smithj
Type: Merchant Year: 1924
Wagon Type: Charles Roberts 16'6 7-plank mineral
Location(s): Colwyn Bay
County(ies): Denbighshire
Railway(s): LMS
Known Number(s): 1-5 Tare Weight(s): 7-1-0
Body: Red-Brown (BR Early Bauxite) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

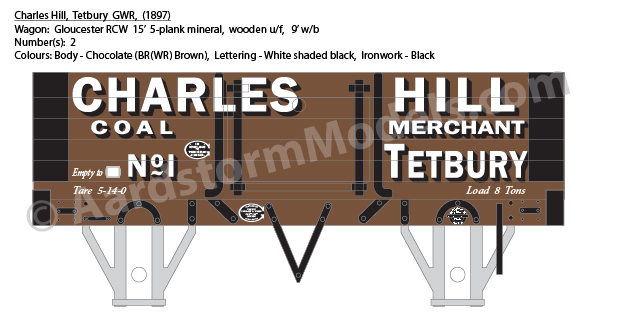

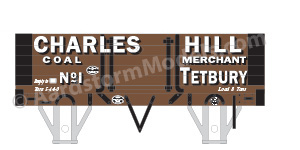

Charles Hill, Tetbury, GWR

 Owner/Operator: Charles Hill
Type: Merchant Year: 1897
Wagon Type: Gloucester RCW 15' 5-plank mineral
Location(s): Tetbury
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 1 Tare Weight(s): 5-14-0
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

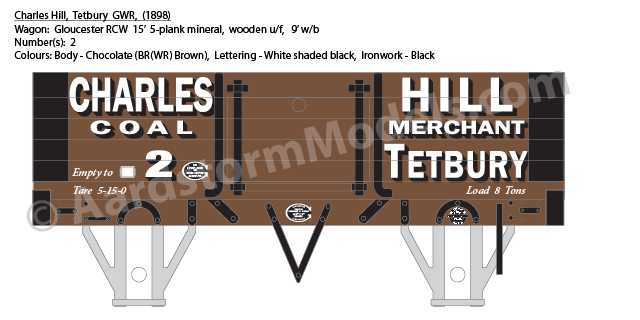

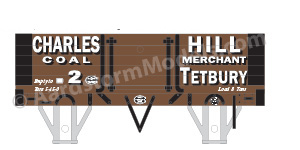

Charles Hill, Tetbury, GWR

 Owner/Operator: Charles Hill
Type: Merchant Year: 1898
Wagon Type: Gloucester RCW 15' 5-plank mineral
Location(s): Tetbury
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 2 Tare Weight(s): 5-15-0
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

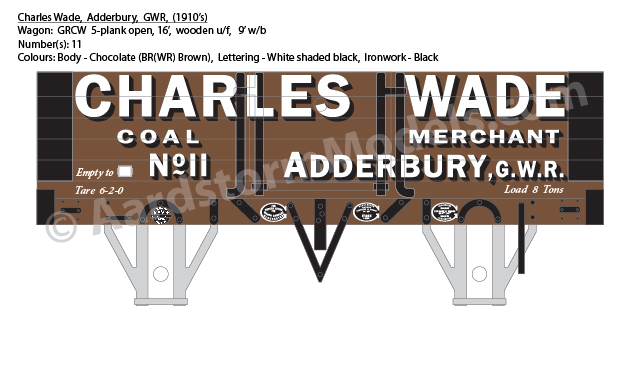

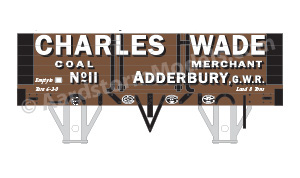

Charles Wade, Adderbury, GWR

 Owner/Operator: Charles Wade
Type: Merchant Year: 1910s
Wagon Type: Gloucester RCW 16' 5-plank open
Location(s): Adderbury
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 11 Tare Weight(s): 6-2-0
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

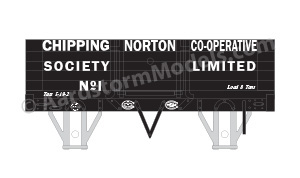

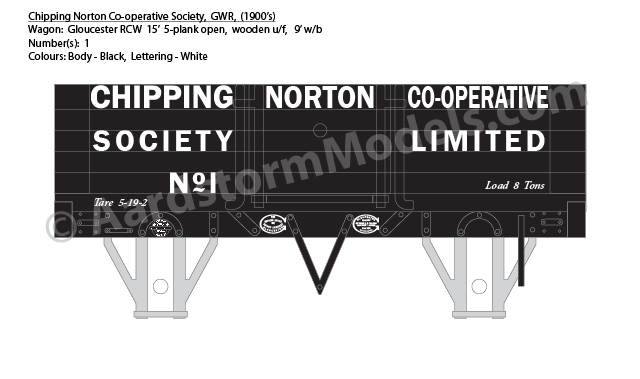

Chipping Norton Co-op, GWR

 Owner/Operator: Chipping Norton Co-operative Society Ltd.
Type: Merchant Year: 1900s
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Chipping Norton
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 1 Tare Weight(s): 5-19-2
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

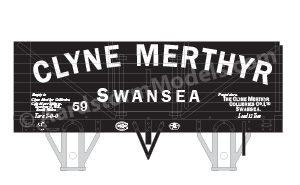

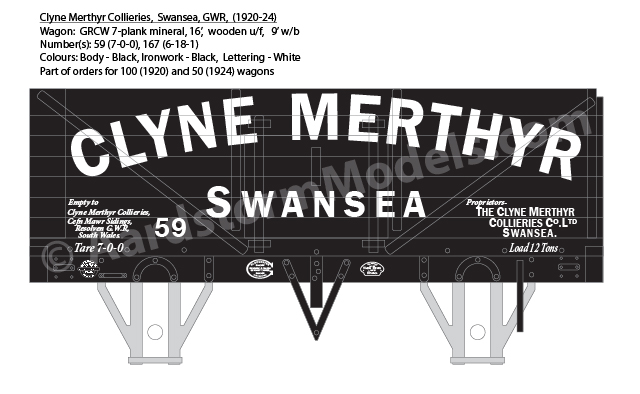

Clyne Merthyr Collieries, Port Talbot, GWR

 Owner/Operator: Clyne Merthyr Collieries Co Ltd
Type: Colliery Year: 1920-24
Wagon Type: Gloucester RCW 16' 7-plank mineral
Location(s): Swansea
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 59, 167 Tare Weight(s): 7-0-0, 6-18-1
Body: Black Lettering: White
Ironwork: Black Other:
Notes: Part of orders for 100 (1920) and 50 (1924) wagons

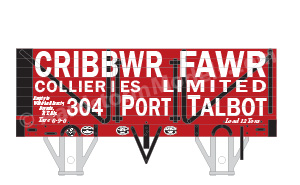

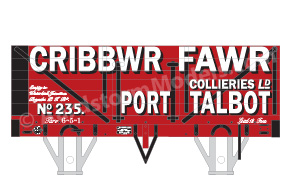

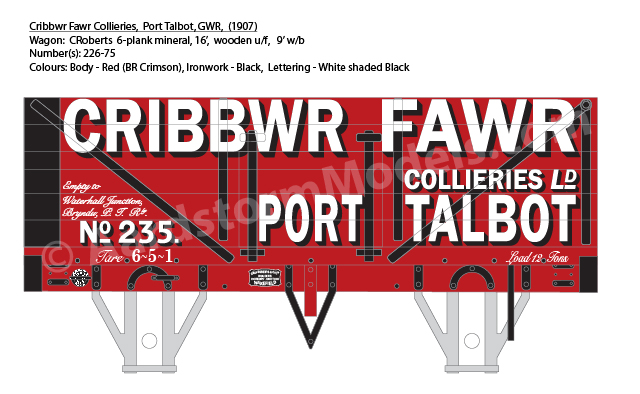

Cribbwr Fawr Collieries, Port Talbot, GWR

 Owner/Operator: Cribbwr Fawr Collieries Ltd
Type: Colliery Year: 1907
Wagon Type: Charles Roberts 16' 6-plank mineral
Location(s): Port Talbot
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 235 Tare Weight(s): 6-5-1
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

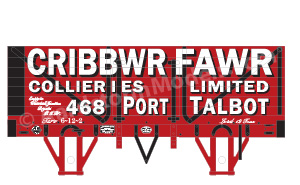

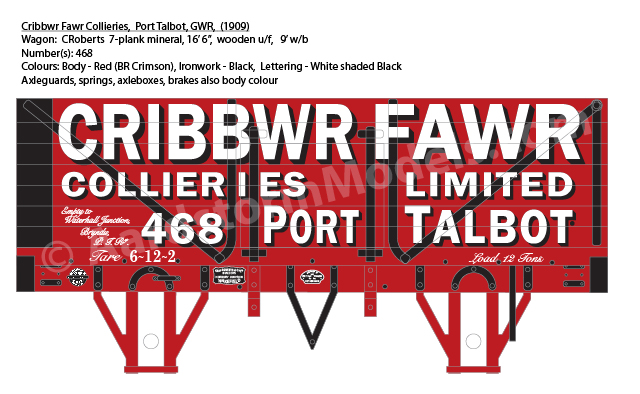

Cribbwr Fawr Collieries, Port Talbot, GWR

 Owner/Operator: Cribbwr Fawr Collieries Ltd
Type: Colliery Year: 1909
Wagon Type: Charles Roberts 16'6 7-plank mineral
Location(s): Port Talbot
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 468 Tare Weight(s): 6-12-2
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other: Axleguards, springs, axleboxes, brakes also body colour.
Notes:

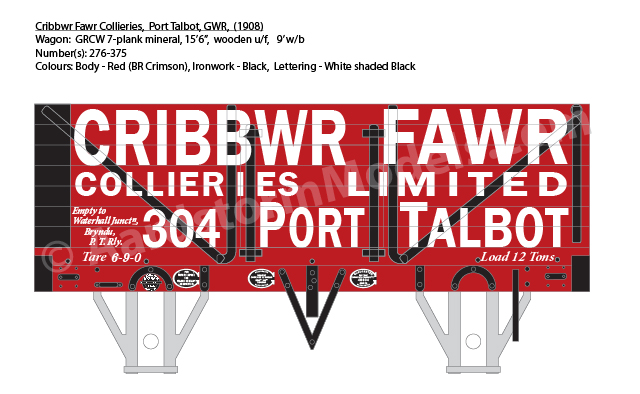

Cribbwr Fawr Collieries, Port Talbot, GWR

 Owner/Operator: Cribbwr Fawr Collieries Ltd
Type: Colliery Year: 1908
Wagon Type: Gloucester RCW 15'6 7-plank mineral
Location(s): Port Talbot
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 276-375 Tare Weight(s): 6-9-0
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

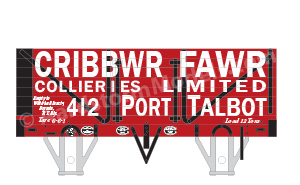

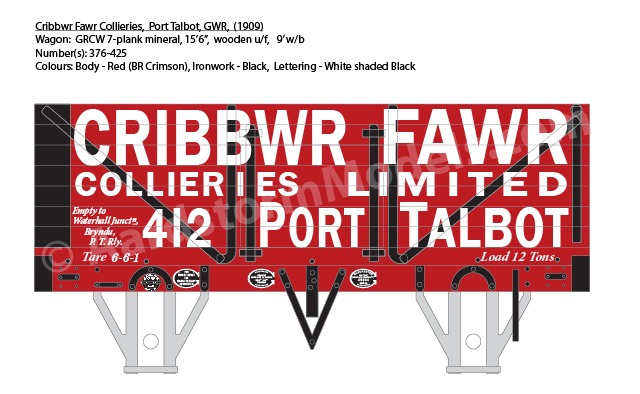

Cribbwr Fawr Collieries, Port Talbot, GWR

 Owner/Operator: Cribbwr Fawr Collieries Ltd
Type: Colliery Year: 1909
Wagon Type: Gloucester RCW 15'6 7-plank mineral
Location(s): Port Talbot
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 376-425 Tare Weight(s): 6-6-1
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

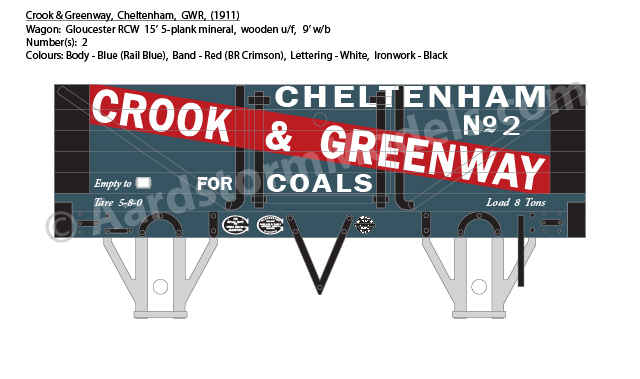

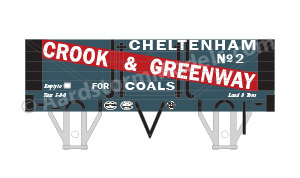

Crook & Greenway, Cheltenham, GWR

 Owner/Operator: Crook & Greenway
Type: Merchant Year: 1911
Wagon Type: Gloucester RCW 15' 5-plank mineral
Location(s): Cheltenham
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 2 Tare Weight(s): 5-8-0
Body: Blue (Rail Blue) Lettering: White
Ironwork: Black Other: Banner - Red (BR Crimson)
Notes:

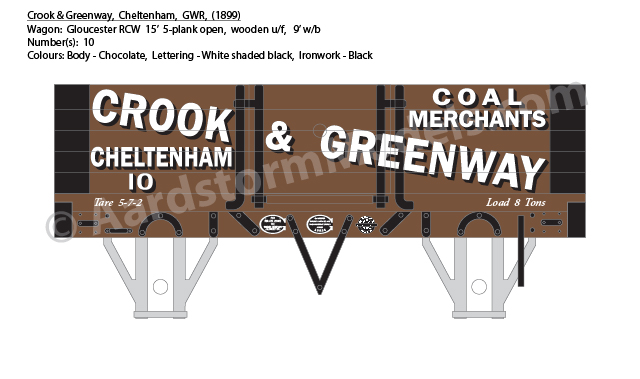

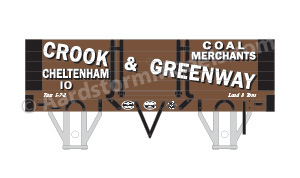

Crook & Greenway, Cheltenham, GWR

 Owner/Operator: Crook & Greenway
Type: Merchant Year: 1899
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Cheltenham
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 10 Tare Weight(s): 5-7-2
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

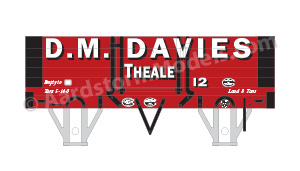

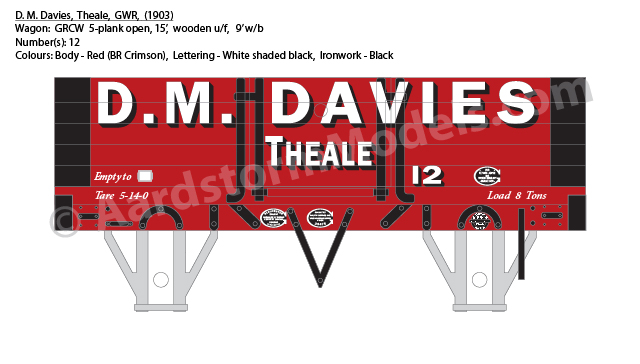

D. M. Davies, Theale, GWR

 Owner/Operator: D. M. Davies
Type: Merchant Year: 1903
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Theale
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 12 Tare Weight(s): 5-14-0
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

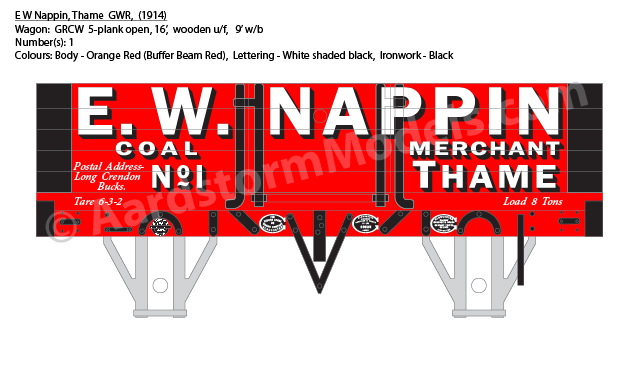

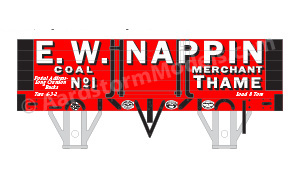

E. W. Nappin, Thame, GWR

 Owner/Operator: E. W. Nappin
Type: Merchant Year: 1914
Wagon Type: Gloucester RCW 16' 5-plank open
Location(s): Thame
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 1 Tare Weight(s): 6-3-2
Body: Orange Red (Buffer Beam Red) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

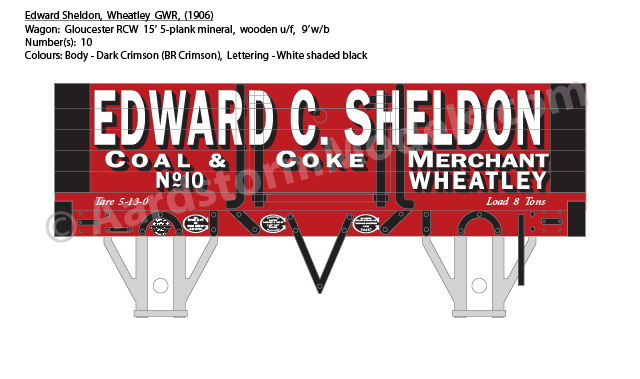

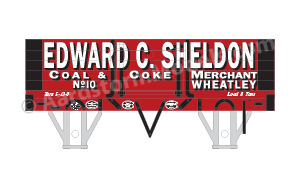

Edward Sheldon, Wheatley, GWR

 Owner/Operator: Edward Sheldon
Type: Merchant Year: 1906
Wagon Type: Gloucester RCW 15' 5-plank mineral
Location(s): Wheatley
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 10 Tare Weight(s): 5-13-0
Body: Dark Crimson (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

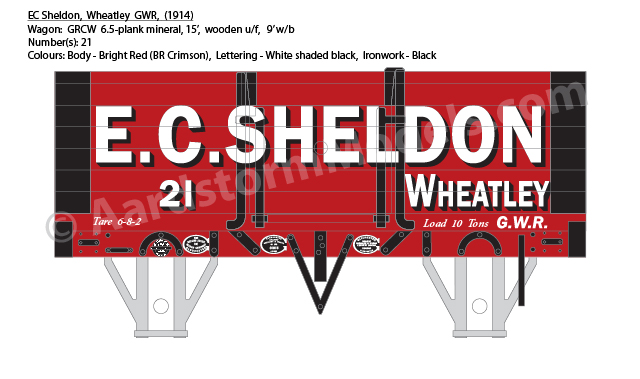

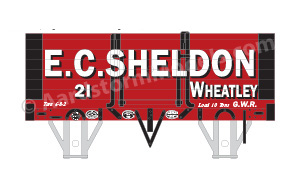

Edward Sheldon, Wheatley, GWR

 Owner/Operator: Edward Sheldon
Type: Merchant Year: 1914
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Wheatley
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 21 Tare Weight(s): 6-8-2
Body: Bright Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

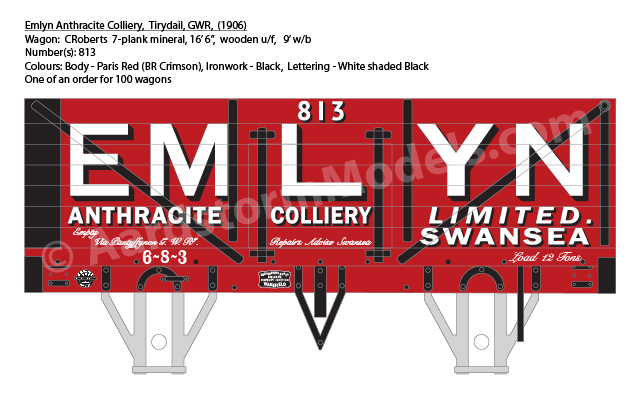

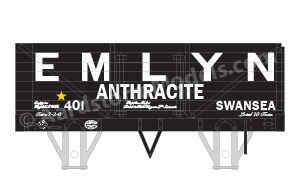

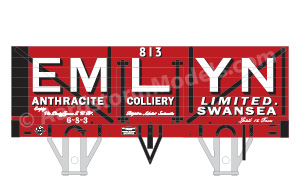

Emlyn Anthracite Colliery, Tirydail, GWR

 Owner/Operator: Emlyn Anthracite Colliery
Type: Colliery Year: 1906
Wagon Type: Charles Roberts 16'6 7-plank mineral
Location(s): Tirydail
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 813 Tare Weight(s): 6-8-3
Body: Paris Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes: One of an order for 100 wagons - maybe nos 800-899?. One source describes this wagon as being green, another as red and that being the standard Emlyn colour, so that's the livery I've gone with.

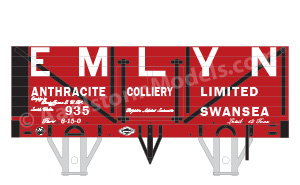

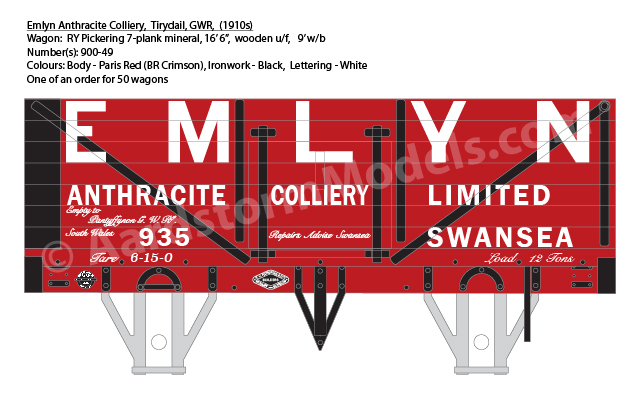

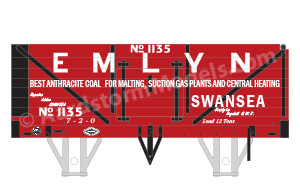

Emlyn Anthracite Colliery, Tirydail, GWR

 Owner/Operator: Emlyn Anthracite Colliery
Type: Colliery Year: 1910s
Wagon Type: R Y Pickering 16'6 7-plank mineral
Location(s): Tirydail
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 900-49 Tare Weight(s): 6-15-0
Body: Paris Red (BR Crimson) Lettering: White
Ironwork: Black Other:
Notes: One of an order for 50 wagons

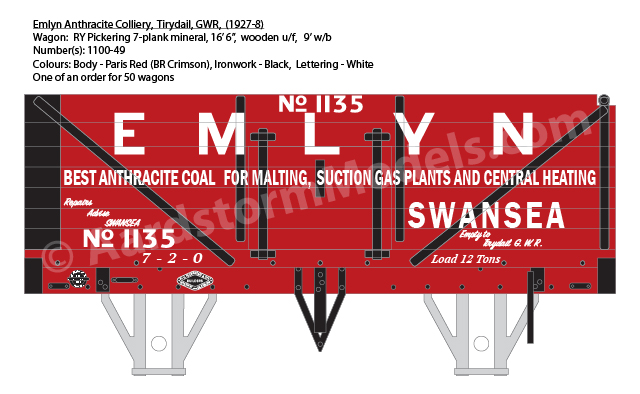

Emlyn Anthracite Colliery, Tirydail, GWR

 Owner/Operator: Emlyn Anthracite Colliery
Type: Colliery Year: 1927-8
Wagon Type: R Y Pickering 16'6 7-plank mineral
Location(s): Tirydail
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 1100-49 Tare Weight(s): 7-2-0
Body: Paris Red (BR Crimson) Lettering: White
Ironwork: Black Other:
Notes: One of an order for 50 wagons

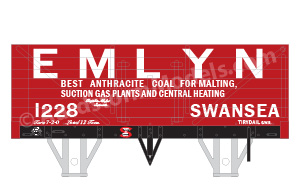

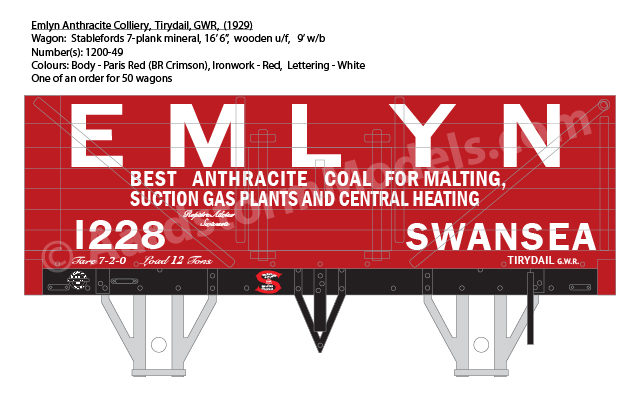

Emlyn Anthracite Colliery, Tirydail, GWR

 Owner/Operator: Emlyn Anthracite Colliery
Type: Colliery Year: 1929
Wagon Type: Stableford 16'6 7-plank mineral
Location(s): Tirydail
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 1200-49 Tare Weight(s): 7-2-0
Body: Paris Red (BR Crimson) Lettering: White
Ironwork: Red Other: Black solebars, red headstocks (?)
Notes: One of an order for 50 wagons

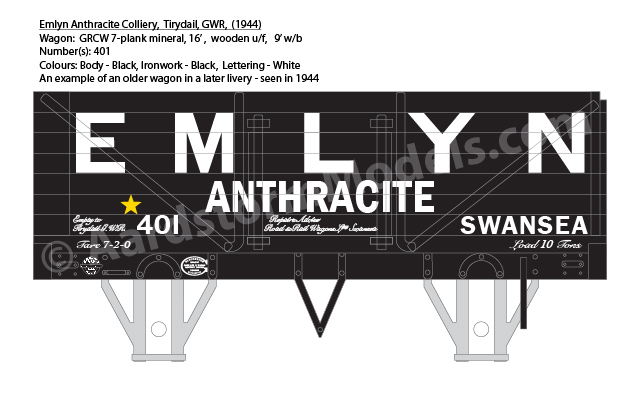

Emlyn Anthracite Colliery, Tirydail, GWR

 Owner/Operator: Emlyn Anthracite Colliery
Type: Colliery Year: 1944
Wagon Type: Gloucester RCW 16' 7-plank mineral
Location(s): Tirydail
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 401 Tare Weight(s): 7-2-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes: An example of an older wgon in a later livery - seen in 1944 (with end door stripe).

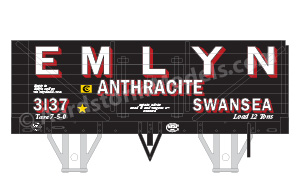

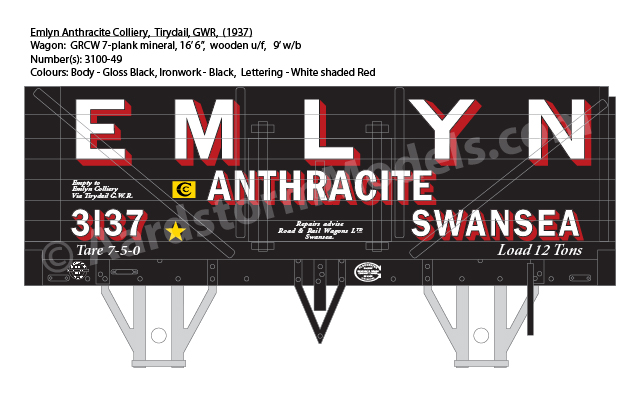

Emlyn Anthracite Colliery, Tirydail, GWR

 Owner/Operator: Emlyn Anthracite Colliery
Type: Colliery Year: 1937
Wagon Type: Gloucester RCW 16'6 7-plank mineral
Location(s): Tirydail
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 3100-49 Tare Weight(s): 7-5-0
Body: Gloss Black Lettering: White shaded red (BR Crimson)
Ironwork: Black Other:
Notes:

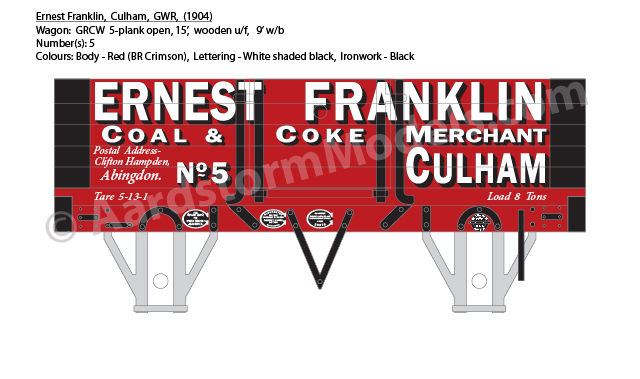

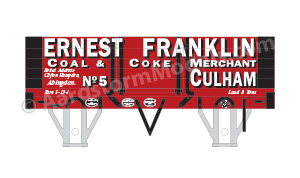

Ernest Franklin, Culham, GWR

 Owner/Operator: Ernest Franklin
Type: Merchant Year: 1904
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Culham
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 5 Tare Weight(s): 5-13-1
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

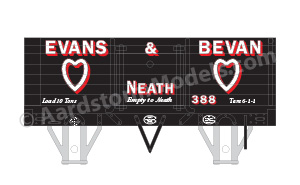

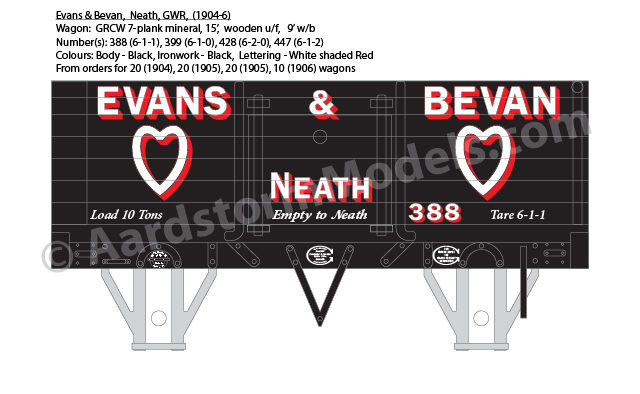

Evans & Bevan, Neath, GWR

 Owner/Operator: Evans & Bevan Ltd
Type: Colliery Year: 1904-6
Wagon Type: Gloucester RCW 15' 7-plank mineral
Location(s): Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 388, 399, 428, 447 Tare Weight(s): 6-1-1, 6-1-0, 6-2-0, 6-1-2
Body: Black Lettering: White shaded red (BR Crimson)
Ironwork: Black Other:
Notes: From orders for 20 (1904), 20 (1905), 20 (1905), 10 (1906) wagons

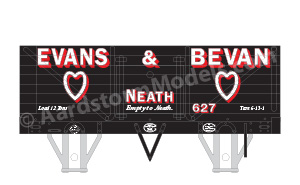

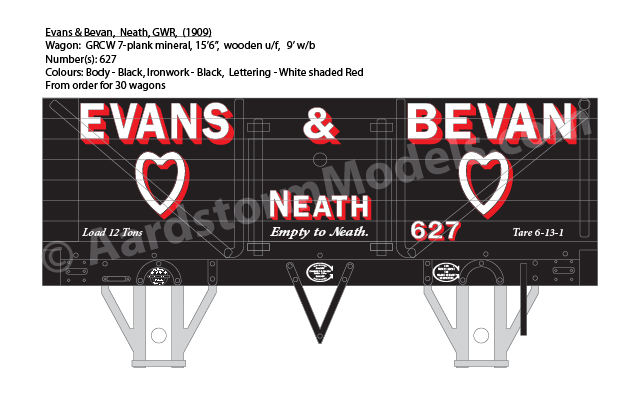

Evans & Bevan, Neath, GWR

 Owner/Operator: Evans & Bevan Ltd
Type: Colliery Year: 1909
Wagon Type: Gloucester RCW 15'6 7-plank mineral
Location(s): Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 627 Tare Weight(s): 6-13-1
Body: Black Lettering: White shaded red (BR Crimson)
Ironwork: Black Other:
Notes: From order for 30 wagons

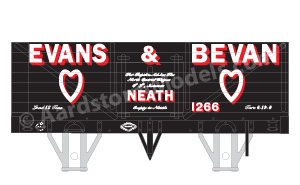

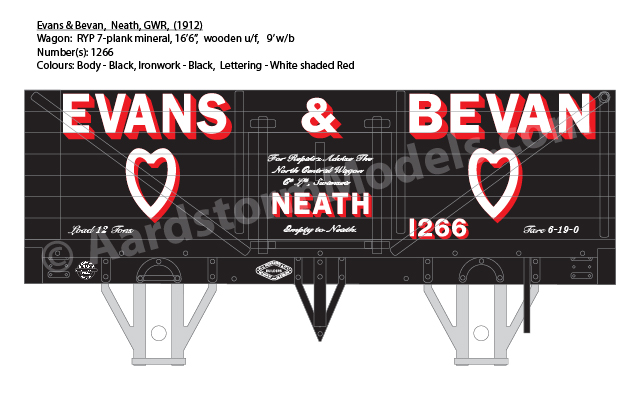

Evans & Bevan, Neath, GWR

 Owner/Operator: Evans & Bevan Ltd
Type: Colliery Year: 1912
Wagon Type: R Y Pickering 16'6 7-plank mineral
Location(s): Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 1266 Tare Weight(s): 6-19-0
Body: Black Lettering: White shaded red (BR Crimson)
Ironwork: Black Other:
Notes:

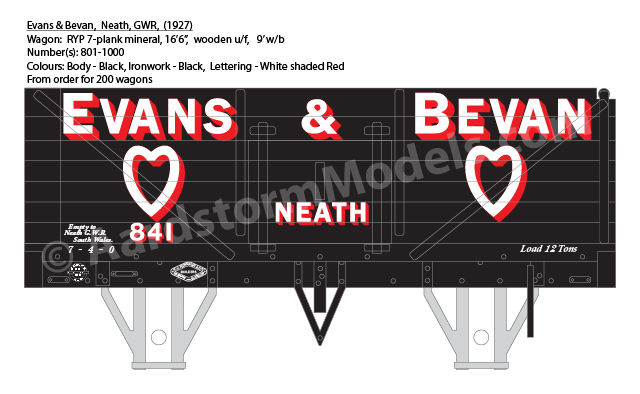

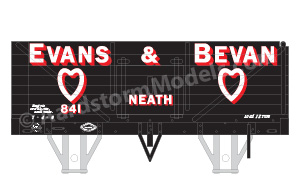

Evans & Bevan, Neath, GWR

 Owner/Operator: Evans & Bevan Ltd
Type: Colliery Year: 1927
Wagon Type: R Y Pickering 16'6 7-plank mineral
Location(s): Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 801-1000 Tare Weight(s): 7-4-0
Body: Black Lettering: White shaded red (BR Crimson)
Ironwork: Black Other:
Notes:

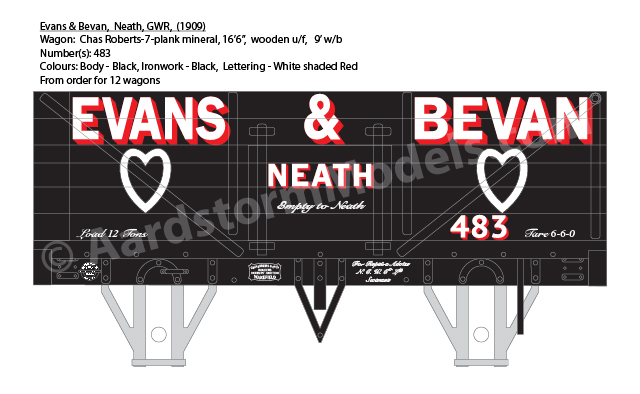

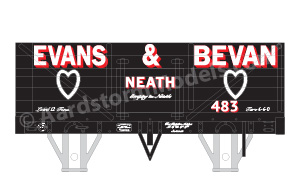

Evans & Bevan, Neath, GWR

 Owner/Operator: Evans & Bevan Ltd
Type: Colliery Year: 1909
Wagon Type: Charles Roberts 16'6 7-plank mineral
Location(s): Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 483 Tare Weight(s): 6-6-0
Body: Black Lettering: White shaded red (BR Crimson)
Ironwork: Black Other: Hearts unshaded
Notes: From order for 12 wagons

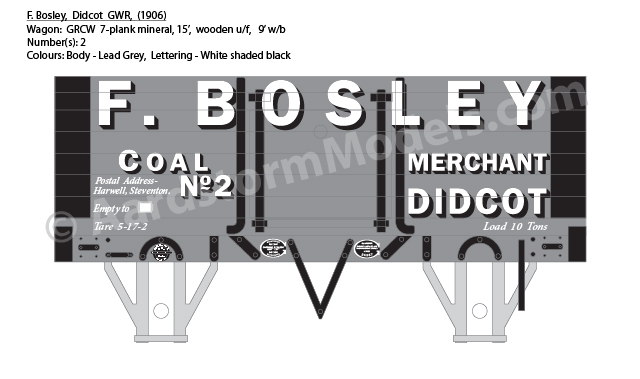

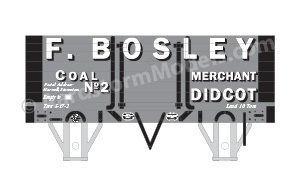

F. Bosley, Didcot, GWR

 Owner/Operator: F. Bosley
Type: Merchant Year: 1906
Wagon Type: Gloucester RCW 15' 7-plank mineral
Location(s): Didcot
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 2 Tare Weight(s): 5-17-2
Body: Lead Grey Lettering: White shaded Black
Ironwork: Black Other:
Notes:

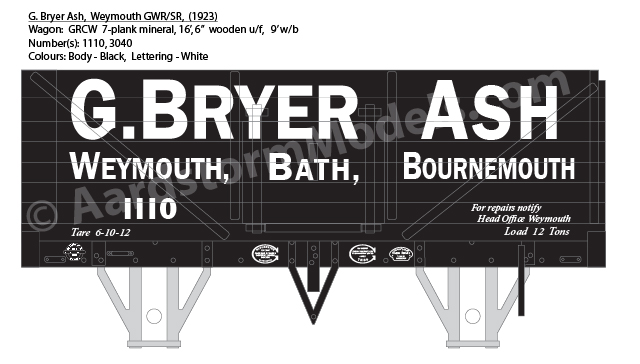

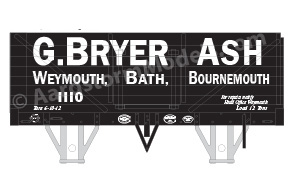

G. Bryer Ash, Weymouth, GWR/SR

 Owner/Operator: G. Bryer Ash
Type: Merchant Year: 1923
Wagon Type: Gloucester RCW 16'6 7-plank mineral
Location(s): Weymouth, Bath, Bournemouth, King's Worthy
County(ies): Dorset, Somerset, Dorset, Hampshire
Railway(s): GWR, SR
Known Number(s): 1110, 3040 Tare Weight(s): 6-10-12, 6-6-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

G. W. Talbot & Son, Reading, GWR

 Owner/Operator: G. W. Talbot & Son Ltd.
Type: Merchant Year: 1923
Wagon Type: Gloucester RCW 16'6 7-plank mineral
Location(s): Reading
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 704 Tare Weight(s): 6-16-0
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

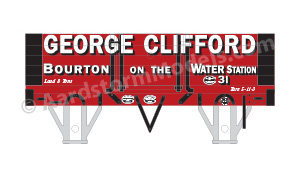

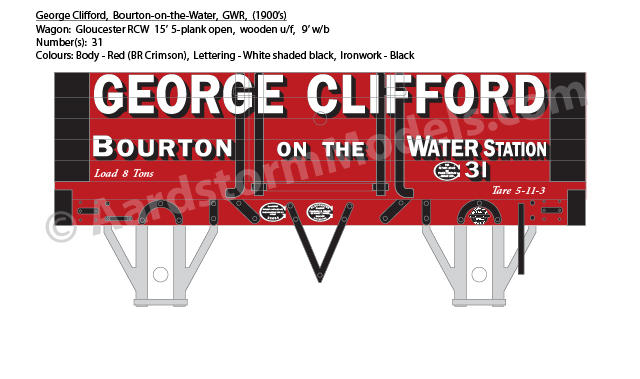

George Clifford, Bourton-on-the-Water, GWR

 Owner/Operator: George Clifford
Type: Merchant Year: 1900s
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Bourton-on-the-Water
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 31 Tare Weight(s): 5-11-3
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

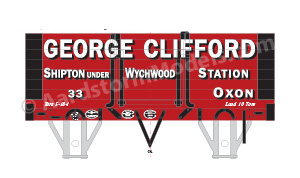

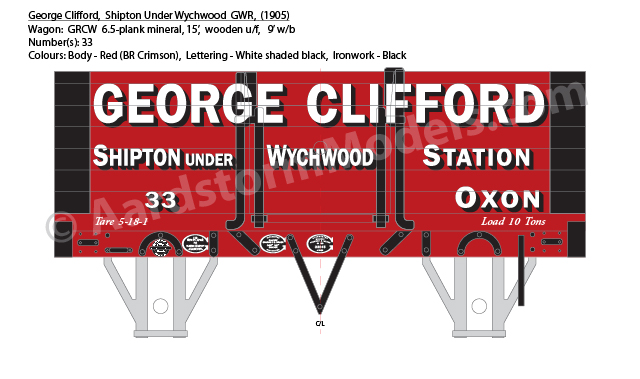

George Clifford, Shipton-under-Wychwood, GWR

 Owner/Operator: George Clifford
Type: Merchant Year: 1905
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Shipton-under-Wychwood
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 33 Tare Weight(s): 5-18-1
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

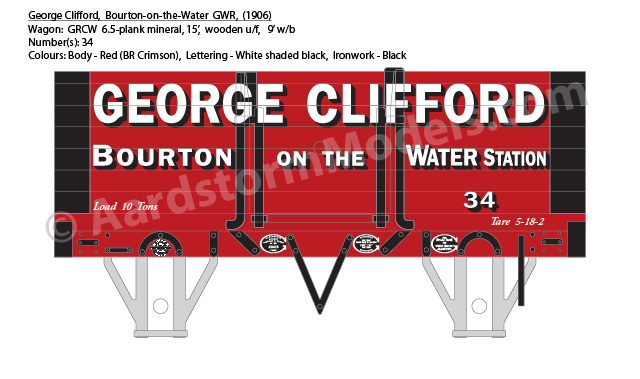

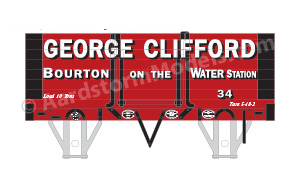

George Clifford, Bourton-on-the-Water, GWR

 Owner/Operator: George Clifford
Type: Merchant Year: 1906
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Bourton-on-the-Water
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 34 Tare Weight(s): 5-18-2
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

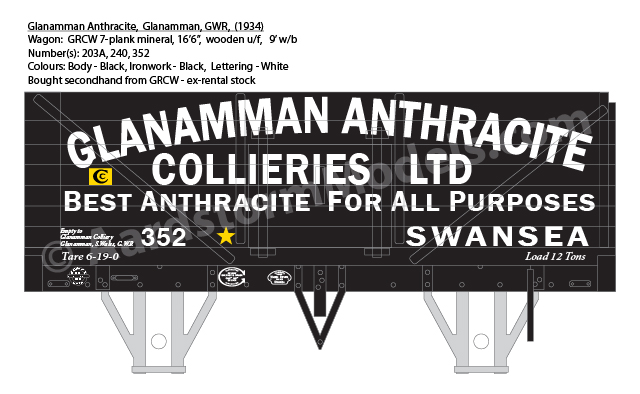

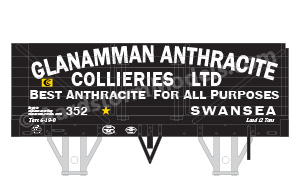

Glanamman Anthracite, Glanamman, GWR

 Owner/Operator: Glanamman Anthracite Collieries Ltd
Type: Colliery Year: 1934
Wagon Type: Gloucester RCW 16'6 7-plank mineral
Location(s): Glanamman
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 203A, 240, 352 Tare Weight(s): 7-0-0, 7-2-0, 6-19-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes: Bought secondhand from GRCW - ex-rental stock

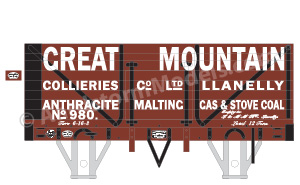

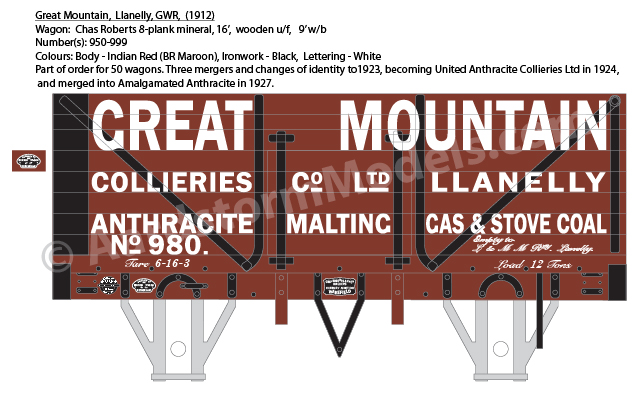

Great Mountain, Llanelly, GWR

 Owner/Operator: Great Mountain Collieries Co Ltd
Type: Colliery Year: 1912
Wagon Type: Charles Roberts 16 8-plank mineral
Location(s): Llanelly
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 950-999 Tare Weight(s): 6-16-3
Body: Indian Red (BR Maroon) Lettering: White
Ironwork: Black Other:
Notes: Part of order for 50 wagons. Three mergers and changes of identity to 1923, becoming United Anthracite Collieries Ltd in 1924, and merged into Amalgamated Anthracite in 1927.

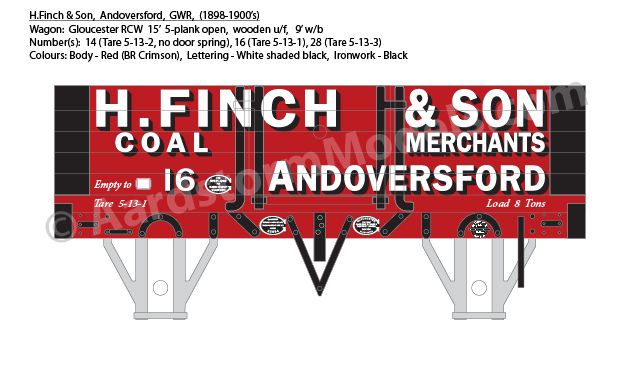

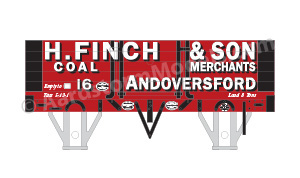

H. Finch & Son, Andoversford, GWR

 Owner/Operator: H. Finch & Son
Type: Merchant Year: 1898-1900s
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Andoversford
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 14, 16, 28 Tare Weight(s): 5-13-2, 5-13-1, 5-13-3
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes: No. 14 does not have door spring.

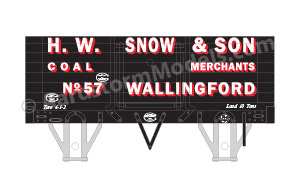

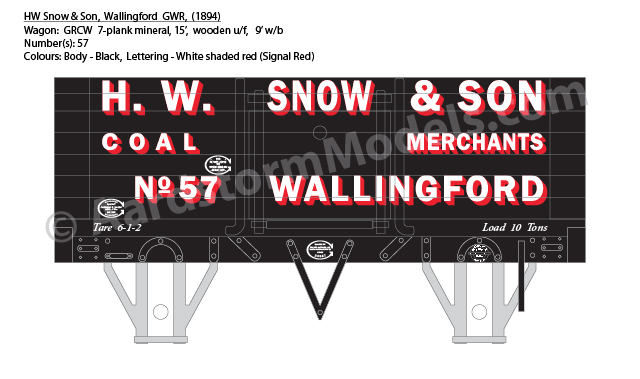

H. W. Snow & Son, Wallingford, GWR

 Owner/Operator: H. W. Snow & Son
Type: Merchant Year: 1894
Wagon Type: Gloucester RCW 15' 7-plank mineral
Location(s): Wallingford
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 57 Tare Weight(s): 6-1-2
Body: Black Lettering: White shaded Red (Signal Red)
Ironwork: Black Other:
Notes:

Holton's, Henley-on-Thames, GWR

 Owner/Operator: Holton's
Type: Merchant Year: 1920s
Wagon Type: Gloucester RCW 16' 7-plank mineral
Location(s): Henley-on-Thames
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 18, 20 Tare Weight(s): 6-1-0
Body: Black Lettering: White, Black on Banner
Ironwork: Black Other: White Banner
Notes:

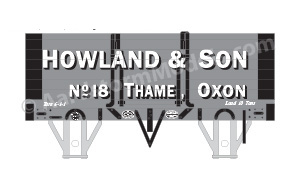

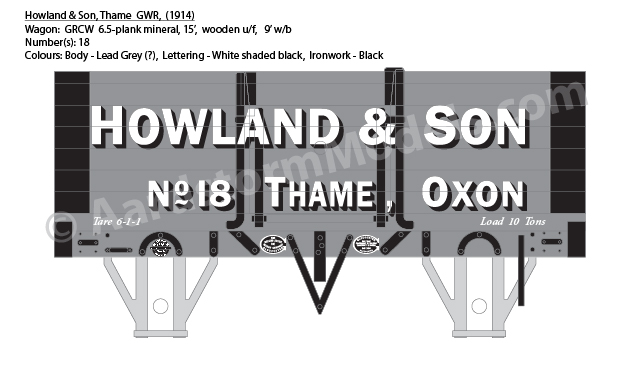

Howland & Son, Thame, GWR

 Owner/Operator: Howland & Son
Type: Merchant Year: 1914
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Thame
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 18 Tare Weight(s): 6-1-1
Body: Lead Grey Lettering: White shaded Black
Ironwork: Black Other:
Notes:

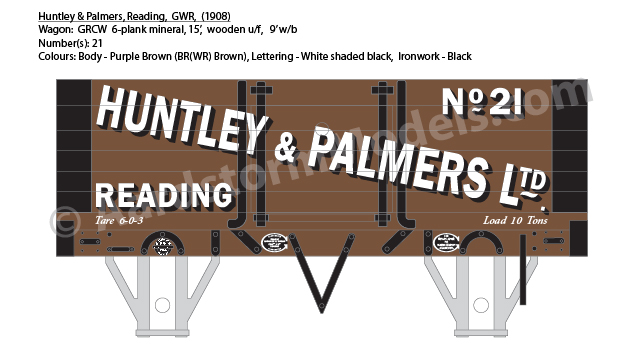

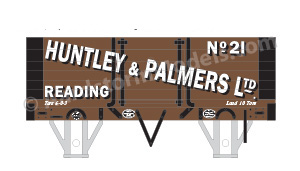

Huntley & Palmers, Reading, GWR

 Owner/Operator: Huntley & Palmers Ltd.
Type: Merchant Year: 1908
Wagon Type: Gloucester RCW 15' 6-plank mineral
Location(s): Reading
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 21 Tare Weight(s): 6-0-3
Body: Purple Brown (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

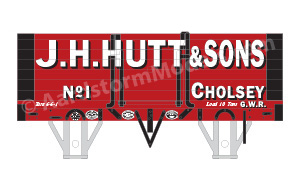

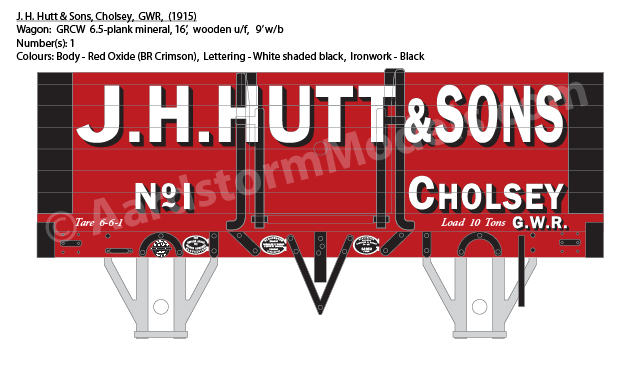

J. H. Hutt & Sons, Cholsey, GWR

 Owner/Operator: J. H. Hutt & Sons
Type: Merchant Year: 1915
Wagon Type: Gloucester RCW 16' 6.5-plank mineral
Location(s): Cholsey
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 1 Tare Weight(s): 6-6-1
Body: Red Oxide (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

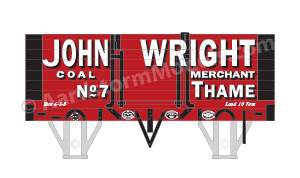

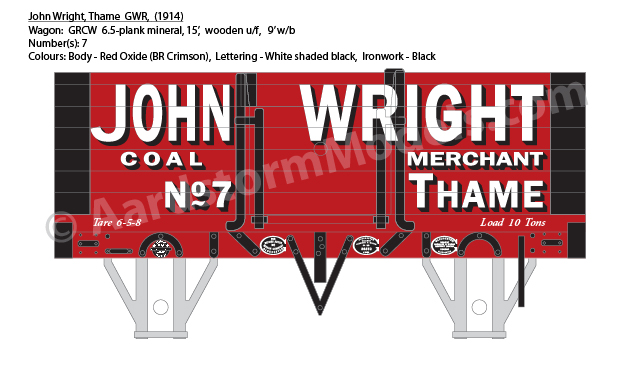

John Wright, Thame, GWR

 Owner/Operator: John Wright
Type: Merchant Year: 1914
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Thame
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 7 Tare Weight(s): 6-5-8
Body: Red Oxide (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

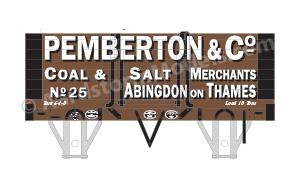

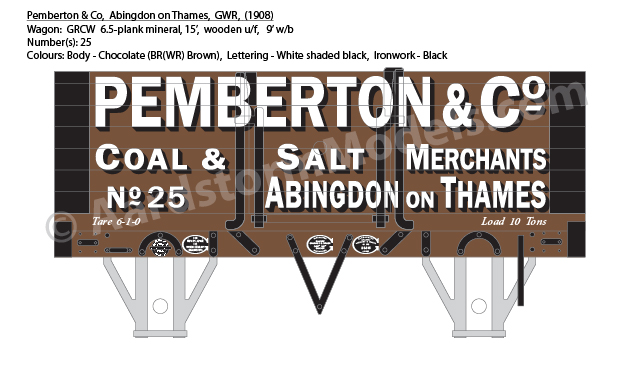

Pemberton & Co, Abingdon-on-Thames, GWR

 Owner/Operator: Pemberton & Co
Type: Merchant Year: 1908
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Abingdon-on-Thames
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 25 Tare Weight(s): 6-1-0
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

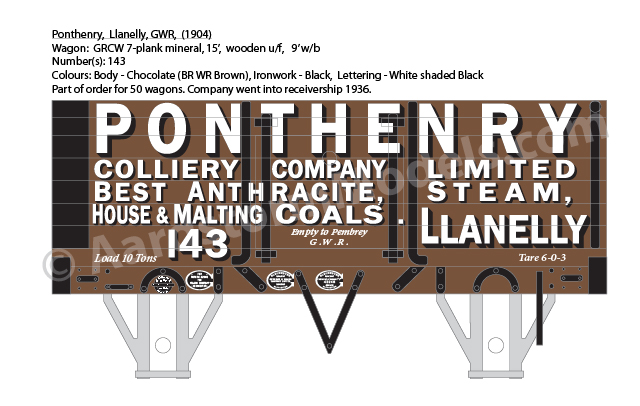

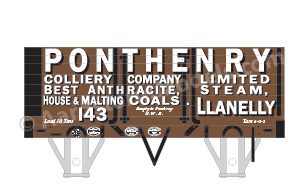

Ponthenry, Llanelly, GWR

 Owner/Operator: Ponthenry Colliery Co Ltd
Type: Colliery Year: 1904
Wagon Type: Gloucester RCW 15' 7-plank mineral
Location(s): Llanelly
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 143 Tare Weight(s): 6-0-3
Body: Chocolate (BR WR Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes: Part of order for 50 wagons. Company went into receivership 1936.

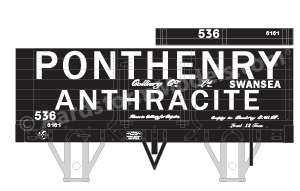

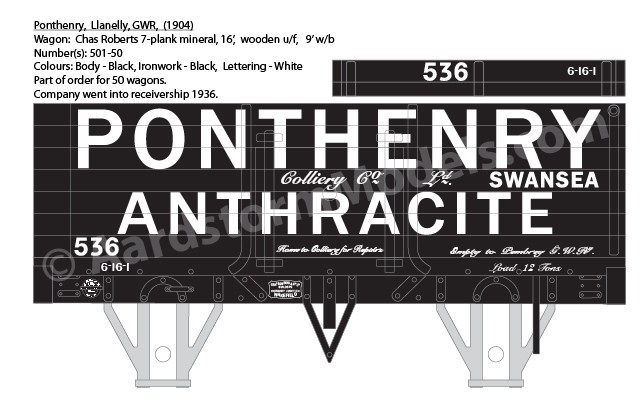

Ponthenry, Llanelly, GWR

 Owner/Operator: Ponthenry Colliery Co Ltd
Type: Colliery Year: 1910
Wagon Type: Charles Roberts 16' 7-plank mineral
Location(s): Llanelly
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 501-50 Tare Weight(s): 6-16-1
Body: Black Lettering: White
Ironwork: Black Other:
Notes: Part of order for 50 wagons. Company went into receivership 1936.

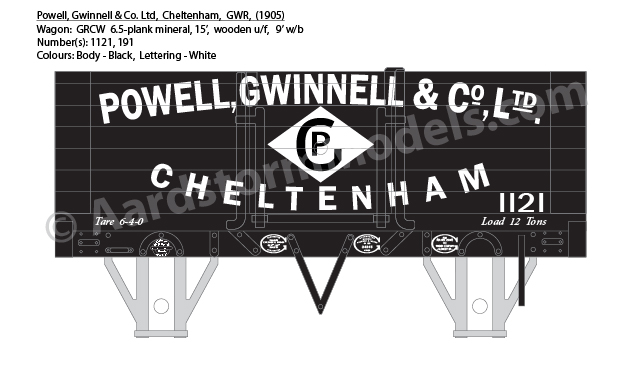

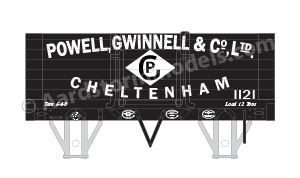

Powell, Gwinnell & Co. Ltd, Cheltenham, GWR

 Owner/Operator: Powell, Gwinnell & Co. Ltd.
Type: Merchant Year: 1905
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Cheltenham
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 1121, 191 Tare Weight(s): 6-4-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

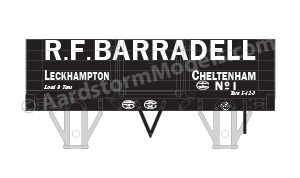

R. F. Barradell, Leckhampton and Cheltenham, GWR

 Owner/Operator: R. F. Barradell
Type: Merchant Year:
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Cheltenham, Leckhampton
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 1 Tare Weight(s): 5-12-3
Body: Black Lettering: Whitek
Ironwork: Black Other:
Notes:

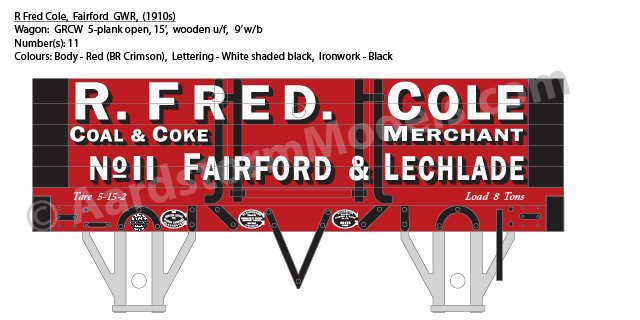

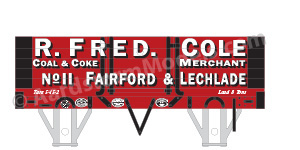

R. Fred Cole, Fairford, GWR

 Owner/Operator: R. Fred Cole
Type: Merchant Year:
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Fairford, Lechlade
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 11 Tare Weight(s): 5-15-2
Body: Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

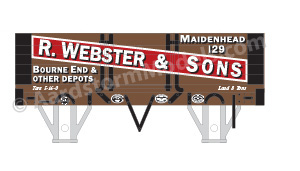

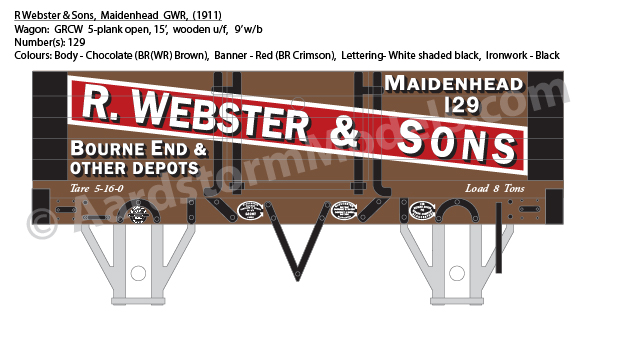

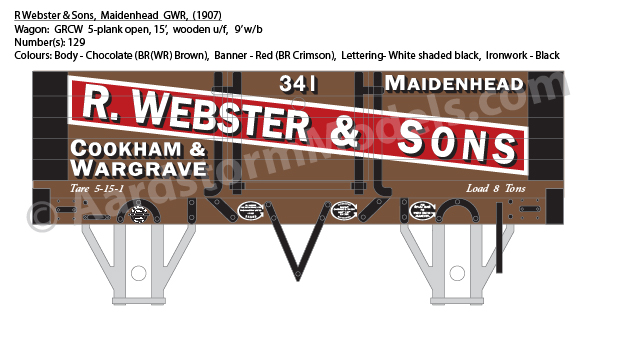

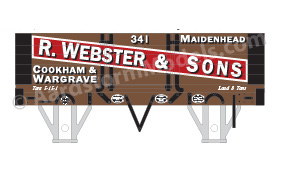

R. Webster & Sons, Maidenhead, GWR

 Owner/Operator: R. Webster & Sons
Type: Merchant Year: 1911
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Maidenhead, Bourne End
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 129 Tare Weight(s): 5-16-0
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other: Banner - Red (BR Crimson)
Notes:

R. Webster & Sons, Maidenhead, GWR

 Owner/Operator: R. Webster & Sons
Type: Merchant Year: 1907
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Maidenhead, Cookham, Wargrave
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 341 Tare Weight(s): 5-15-1
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other: Banner - Red (BR Crimson)
Notes:

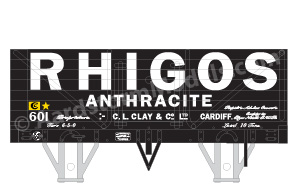

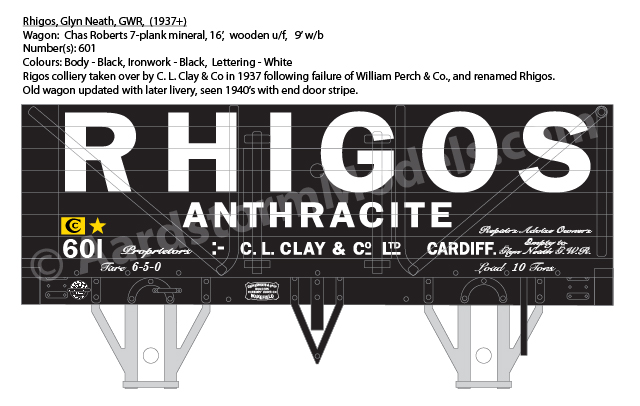

Rhigos Anthracite, Glyn Neath, GWR

 Owner/Operator: Rhigos (C. L. Clay & Co Ltd)
Type: Colliery Year: Unknown
Wagon Type: Charles Roberts 16' 7-plank mineral
Location(s): Glyn Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 813 Tare Weight(s): 6-5-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes: Rigos colliery taken over by C. L. Clay & Co in 1937 following failure of William Perch & Co., and renamed Rhigos. Old wagon updated with later livery, seen 1940’s with end door stripe. Builder of wagon unknown, but drawn as similar Chas Roberts design.

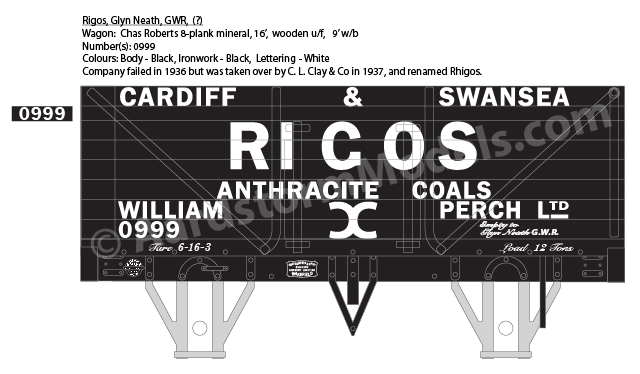

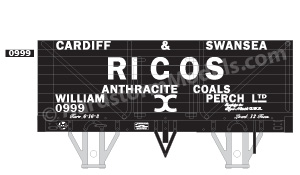

Rigos Anthracite, Glyn Neath, GWR

 Owner/Operator: Rigos (William Perch & Co Ltd)
Type: Colliery Year: Unknown
Wagon Type: Charles Roberts 16 8-plank mineral
Location(s): Glyn Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 0999 Tare Weight(s): 6-16-3
Body: Black Lettering: White
Ironwork: Black Other:
Notes: William Perch company failed in 1936 but was taken over by C. L. Clay & Co in 1937, and renamed Rhigos. Builder of wagon unknown, but drawn as similar Chas Roberts design.

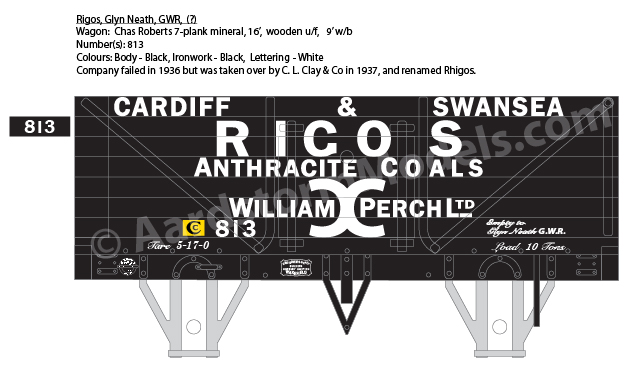

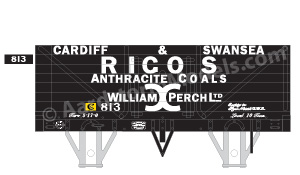

Rrigos Anthracite, Glyn Neath, GWR

 Owner/Operator: Rigos (William Perch & Co Ltd)
Type: Colliery Year: Unknown
Wagon Type: Charles Roberts 16' 7-plank mineral
Location(s): Glyn Neath
County(ies): Glamorgan
Railway(s): GWR
Known Number(s): 813 Tare Weight(s): 5-17-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes: William Perch company failed in 1936 but was taken over by C. L. Clay & Co in 1937, and renamed Rhigos. Builder of wagon unknown, but drawn as similar Chas Roberts design.

S. G. Foster, Thame, GWR

 Owner/Operator: S. G. Foster
Type: Merchant Year: 1911
Wagon Type: Gloucester RCW 16' 5-plank open
Location(s): Thame
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 50 Tare Weight(s): 5-19-3
Body: Chocolate (BR(WR) Brown) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

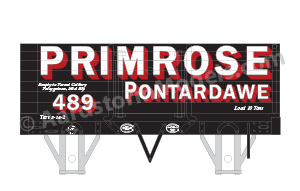

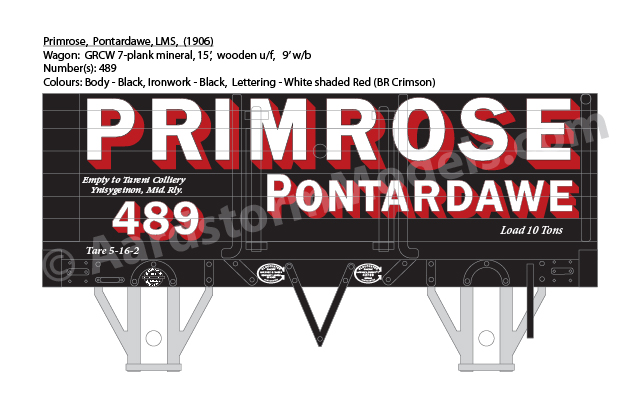

Primrose, Pontardawe, LMS

 Owner/Operator: South Wales Primrose Coal Co
Type: Colliery Year: 1906
Wagon Type: Gloucester RCW 15' 7-plank mineral
Location(s): Pontardawe
County(ies): Glamorgan
Railway(s): LMS
Known Number(s): 489 Tare Weight(s): 5-16-2
Body: Black Lettering: White shaded Red (BR Crimson)
Ironwork: Black Other:
Notes:

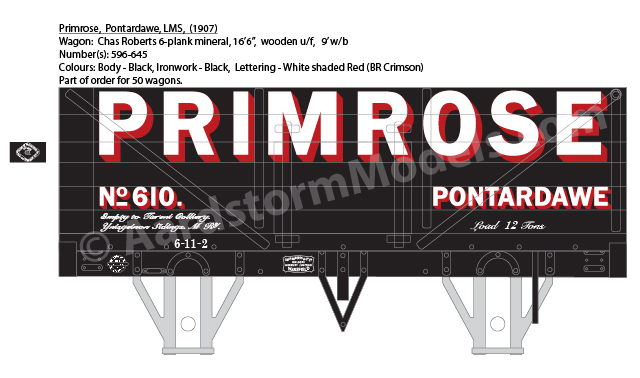

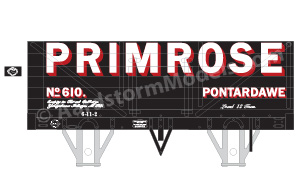

Primrose, Pontardawe, LMS

 Owner/Operator: South Wales Primrose Coal Co
Type: Colliery Year: 1907
Wagon Type: Charles Roberts 16'6 6-plank mineral
Location(s): Pontardawe
County(ies): Glamorgan
Railway(s): LMS
Known Number(s): 596-645 Tare Weight(s): 6-11-2
Body: Black Lettering: White shaded Red (BR Crimson)
Ironwork: Black Other:
Notes: Part of order for 50 wagons.

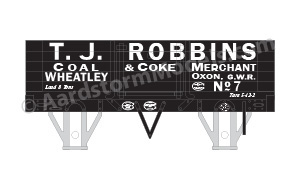

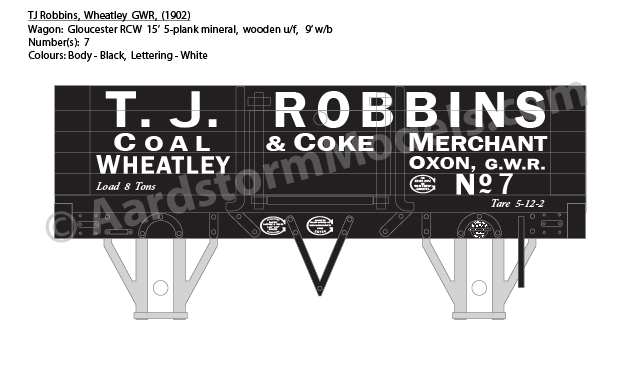

T. J. Robbins, Wheatley, GWR

 Owner/Operator: T. J. Robbins
Type: Merchant Year: 1902
Wagon Type: Gloucester RCW 15' 5-plank mineral
Location(s): Wheatley
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 7 Tare Weight(s): 5-12-2
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

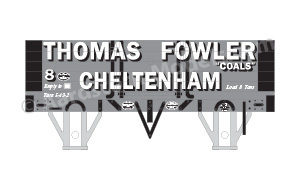

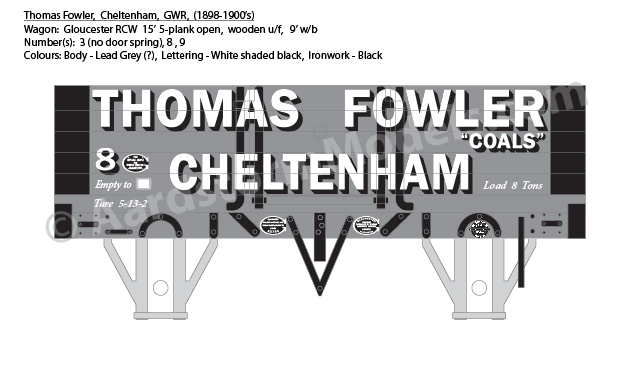

Thomas Fowler, Cheltenham, GWR

 Owner/Operator: Thomas Fowler
Type: Merchant Year: 1898-1900s
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Cheltenham
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 3, 8, 9 Tare Weight(s): 5-13-2
Body: Lead Grey Lettering: White shaded Black
Ironwork: Black Other:
Notes: No. 3 has no door spring

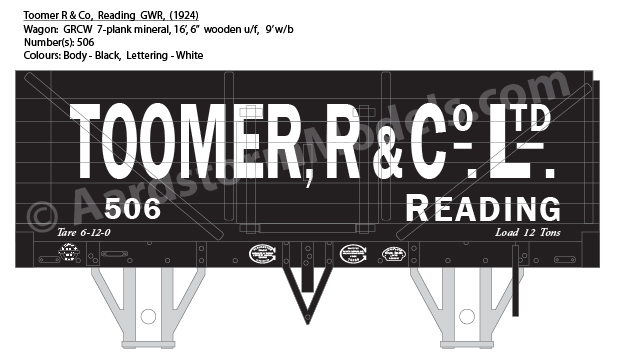

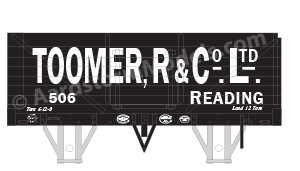

Toomer R. & Co, Reading, GWR

 Owner/Operator: Toomer R. & Co. Ltd.
Type: Merchant Year: 1924
Wagon Type: Gloucester RCW 16'6 7-plank mineral
Location(s): Reading
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 506 Tare Weight(s): 6-12-0
Body: Black Lettering: White
Ironwork: Black Other:
Notes:

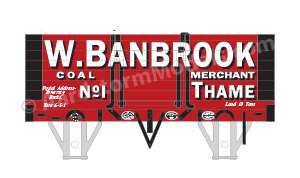

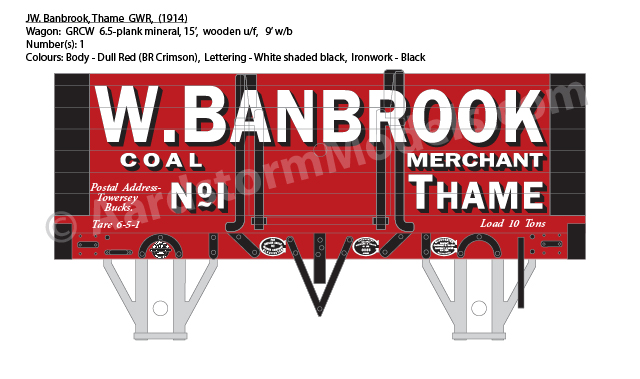

W. Banbrook, Thame, GWR

 Owner/Operator: W. Banbrook
Type: Merchant Year: 1914
Wagon Type: Gloucester RCW 15' 6.5-plank mineral
Location(s): Thame
County(ies): Oxfordshire
Railway(s): GWR
Known Number(s): 1 Tare Weight(s): 6-5-1
Body: Dull Red (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes:

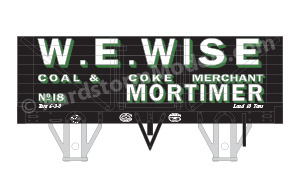

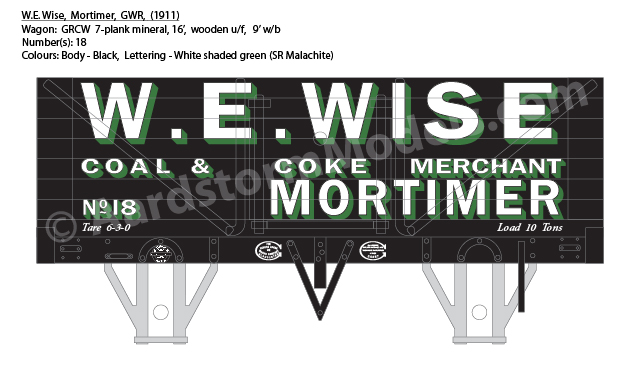

W. E. Wise, Mortimer, GWR

 Owner/Operator: W. E. Wise
Type: Merchant Year: 1911
Wagon Type: Gloucester RCW 16' 7-plank mineral
Location(s): Mortimer
County(ies): Berkshire
Railway(s): GWR
Known Number(s): 18 Tare Weight(s): 6-3-0
Body: Black Lettering: White shaded Green (SR Malachite)
Ironwork: Black Other:
Notes:

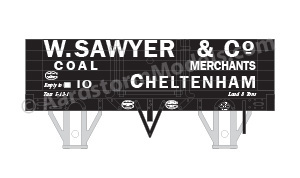

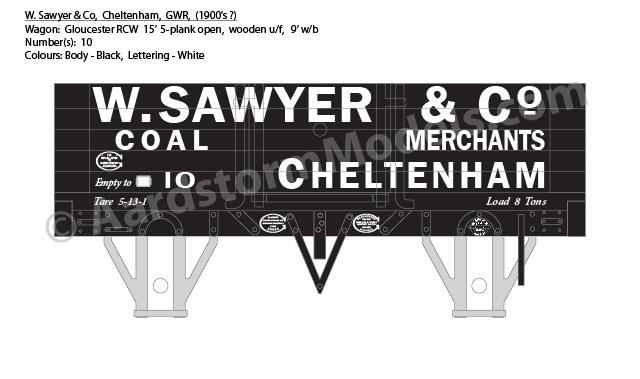

W. Sawyer & Co, Cheltenham, GWR

 Owner/Operator: W. Sawyer & Co
Type: Merchant Year: 1900s
Wagon Type: Gloucester RCW 15' 5-plank open
Location(s): Cheltenham
County(ies): Gloucestershire
Railway(s): GWR
Known Number(s): 10 Tare Weight(s): 5-13-1
Body: Black Lettering: White shaded Black
Ironwork: Black Other:
Notes:

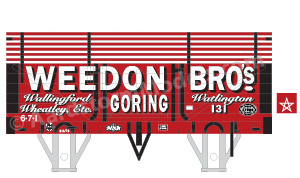

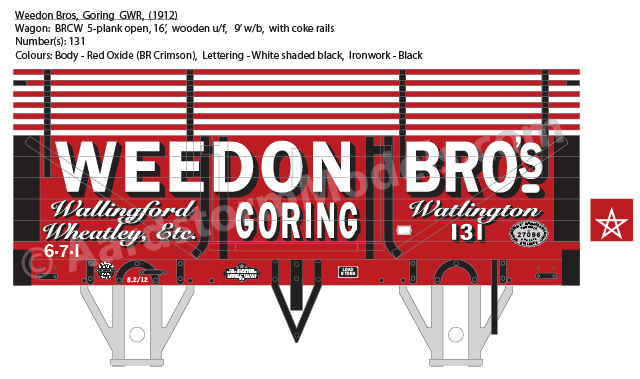

Weedon Bros, Goring, GWR

 Owner/Operator: Weedon Brothers
Type: Merchant Year: 1912
Wagon Type: Birmingham RCW 16' 5-plank open
Location(s): Goring, Wallingford, Watlington, Wheatley
County(ies): Berkshire, Oxfordshire
Railway(s): GWR
Known Number(s): 131 Tare Weight(s): 6-7-1
Body: Red Oxide (BR Crimson) Lettering: White shaded Black
Ironwork: Black Other:
Notes: With removable coke rails.

Note: Clicking on any of the images on this page, such as those above, will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up).
