Wagon Plates and Markings Decal Type Selection
Tank Wagon Speed Star Plates

This page shows the range of wagon solebar plate or marking decals available in this group. To use it to select a paricular decal type, please click on the button below the relevant illustration. This will take you back to the main wagon plates and markings decals page while setting the decal type to that of the illustration you have selected. There you will be able to make changes to the basic plate or marking decal you've selected here.

Return
Return to main page without making a selection

Note: Clicking on any of the images on this page will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up).

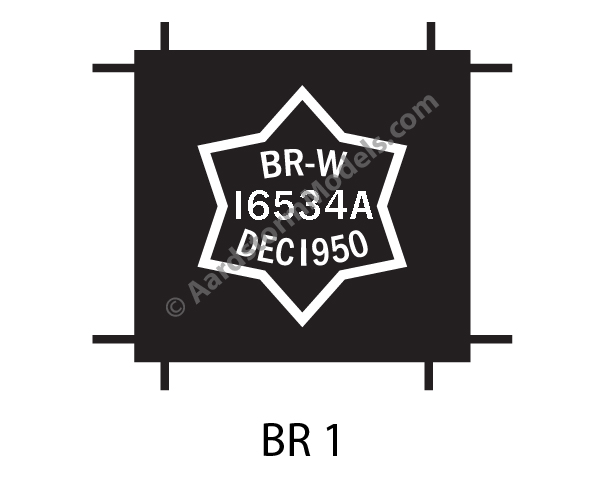

Speed Star Plate
BR, 1 Star

Select & Return

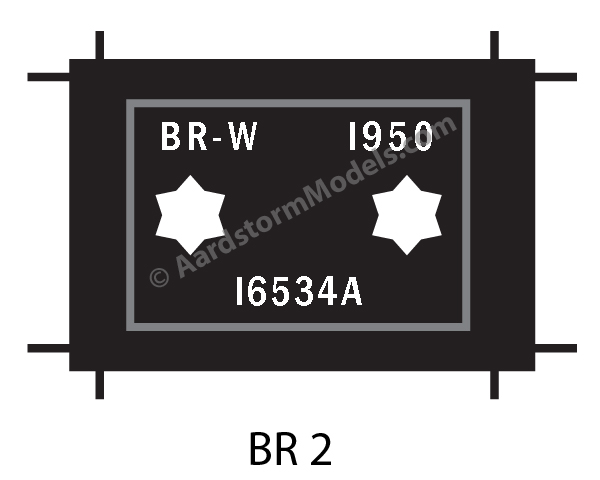

Speed Star Plate
BR, 2 Star

Select & Return

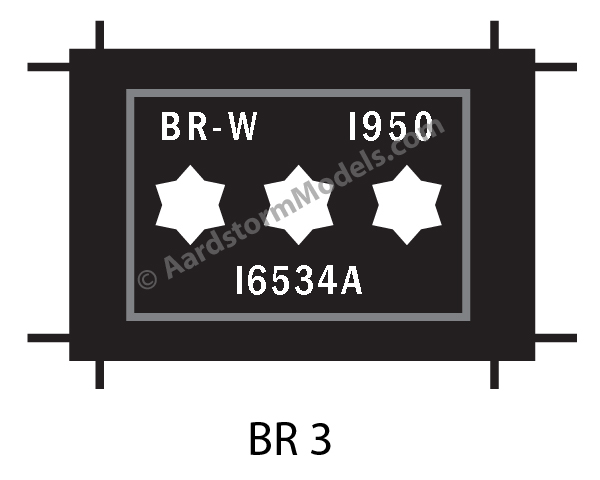

Speed Star Plate
BR, 3 Star

Select & Return

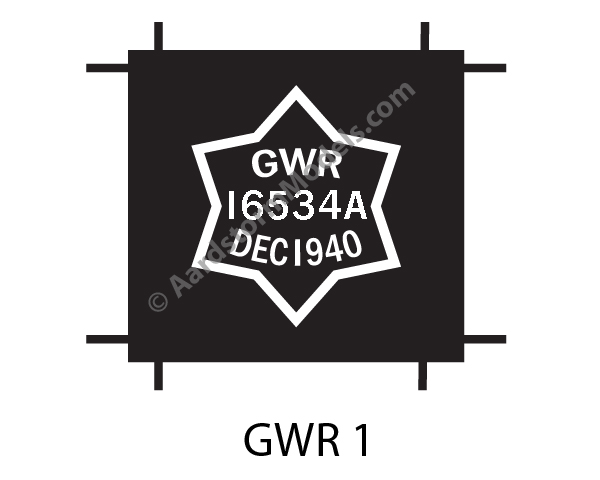

Speed Star Plate
GWR, 1 Star

Select & Return

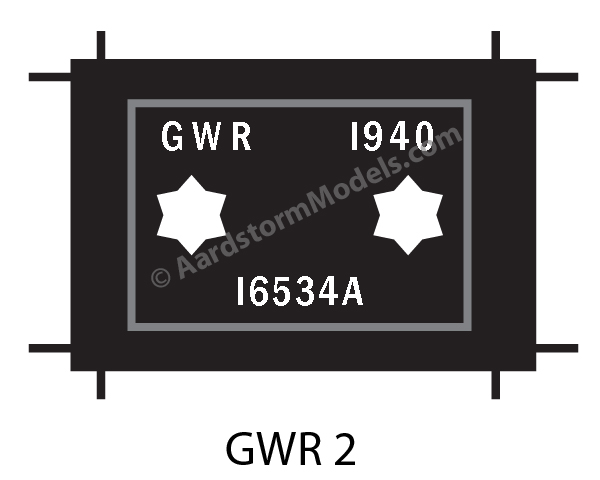

Speed Star Plate
GWR, 2 Star

Select & Return

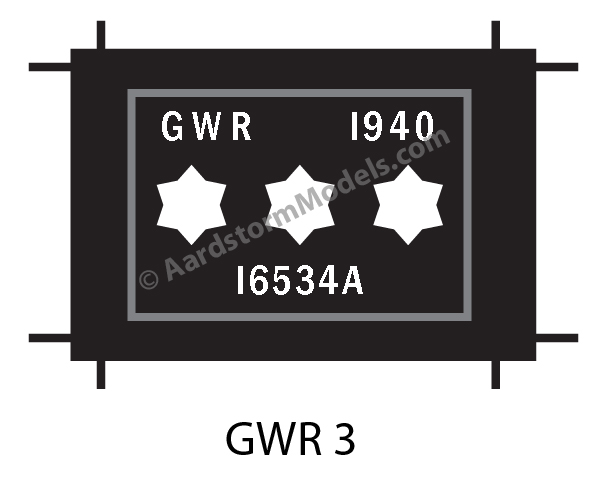

Speed Star Plate
GWR, 3 Star

Select & Return

Speed Star Plate
LMS, 1 Star

Select & Return

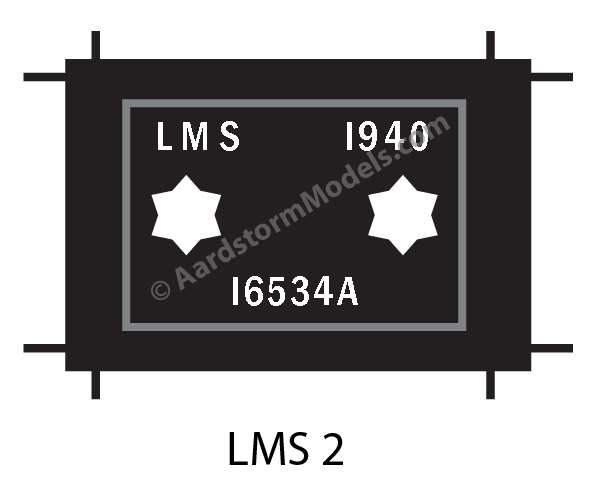

Speed Star Plate
LMS, 2 Star

Select & Return

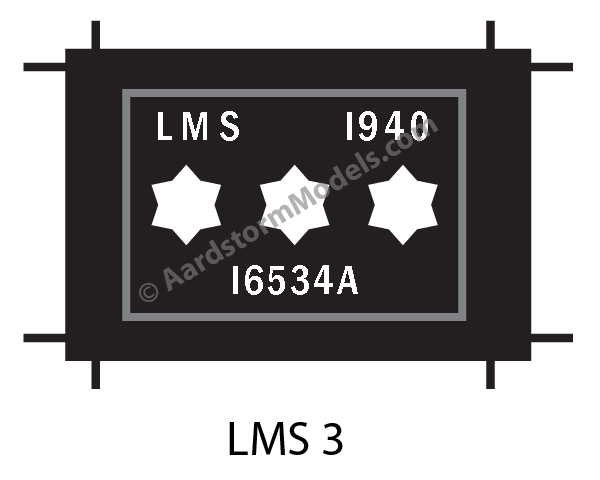

Speed Star Plate
LMS, 3 Star

Select & Return

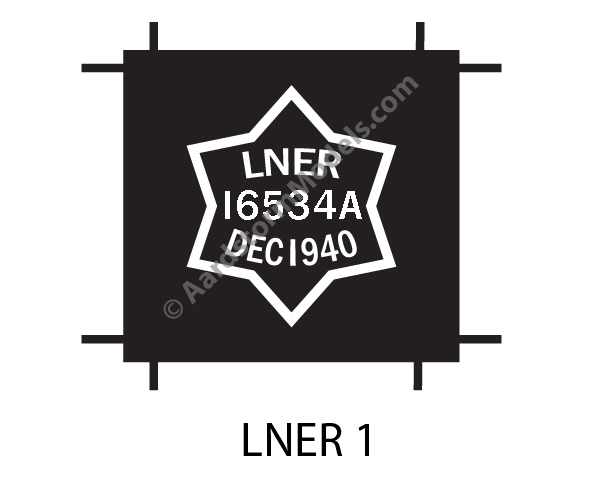

Speed Star Plate
LNER, 1 Star

Select & Return

Speed Star Plate
LNER, 2 Star

Select & Return

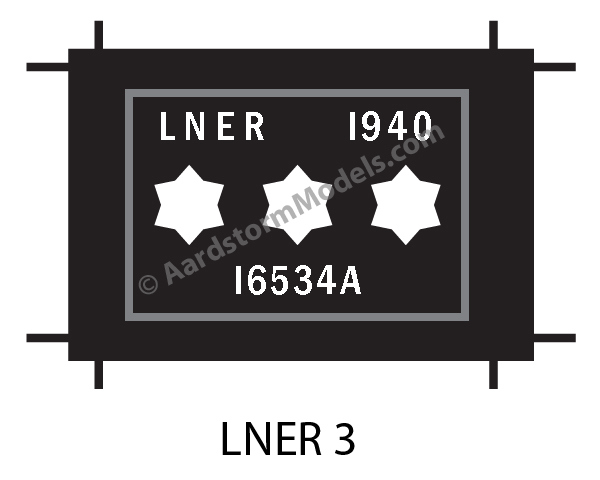

Speed Star Plate
LNER, 3 Star

Select & Return

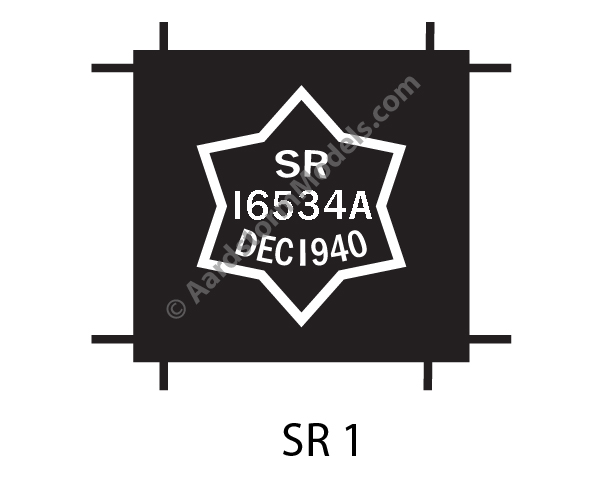

Speed Star Plate
SR, 1 Star

Select & Return

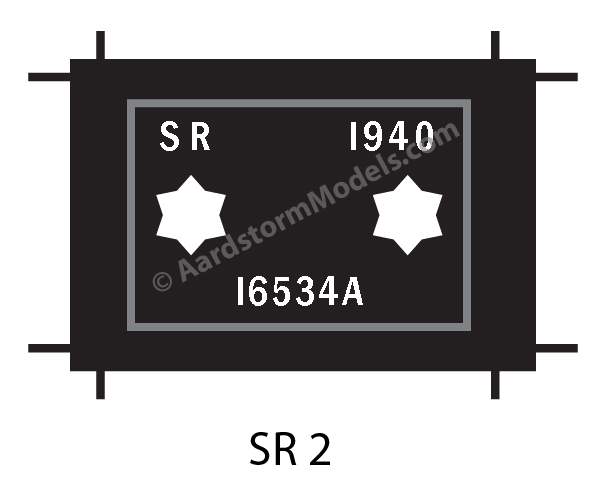

Speed Star Plate
SR, 2 Star

Select & Return

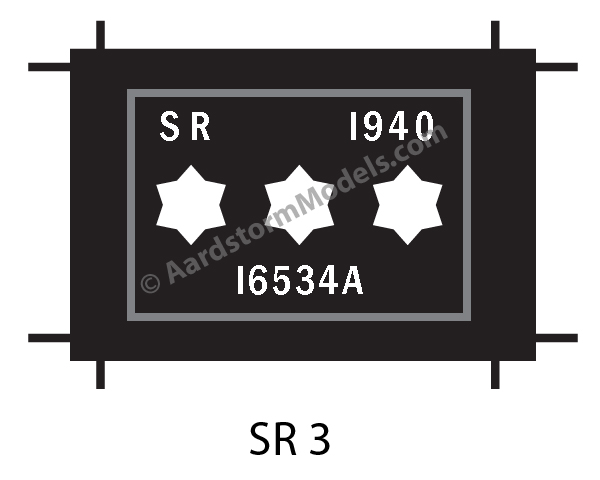

Speed Star Plate
SR, 3 Star

Select & Return

Note: Clicking on any of the images on this page, such as those above, will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up).

Notes

Tank wagons, like ordinary wagons, were initially only permtted to run in ordinary freight trains, at averega point-to-point speeds of up to 20 mph. In 1913 the RCH created a special category of tank wagons that were built to modern standards, and permitted them to run in faster trains, at up to 35 mph, once they had been "run-in" for 400 miles without problems. These wagons were identified by a 2 ft diameter 6-point star painted on the tank barrel, usually towards the bottom right end. This was accompanied by a star-shaped plate fixed to the solebar, again towards the right-hand end. This plate contained the registration number of the wagon, with an "A" suffix, the railway comanpy responsible for its registration, and the date of acceptance and issue of the star plate.

In 1935 a further speed category was created, for wagons fitted with vacuum brakes, and these were permitted to run in faster fitted freight trains, up to 60 mph. These were initially identified by "F.T." markings, but this was quickly replaced by two painted stars, of 1 ft 6 in. diameter on the tank barrel. This was accompanied by a new rectangular plate on the solebar, with two raised stars and year, company and number of registration.

A third category was also created, for wagons carrying non-flammable loads, that were permitted to run in fitted freight or passenger trains at over 60 mph. These were given 3 stars, with similar markings and plates as the 2-star category.
