Wagon Type Selection

for Private Owner Mineral Wagons Decals

This page shows the range of wagon types I currently have available for substituting for the original Private Owner mineral wagons my decals are designed to fit. To use it to select a particular wagon type, please click on the button below the relevant illustration. This will take you back to the main PO wagons decals page while setting the substitute wagon type to that you have selected.

To return to that page without selecting a wagon type, please click here:

Return to Decals Page

If you want decals to fit a wagon type that is not listed here, please contact me with full details of the wagon type (ideally including a clear photo and/or drawing) and I will see what I can do to add it to those below, probably at no extra charge to you beyond my standard decals cost.

Clicking on a wagon image will cause a larger version of the image to appear in a new tab or window of your browser (depending on how your browser is set up). The same browser tab/window will be used for all images you click on.

Filter and Sort Wagons

To assist with your choice, and restrict the number of wagon types shown below, you are welcome to use the filter options below to only display wagons that match certain characteristics, and then sort the results into an order based on selected characteristics.

Within a filter specification, the various options are combined as "OR". That is, the more options you select, the more wagons will be displayed. The "Any" option causes all of the other options for that filter to be ignored, and has to be deselected for the other options to take effect.

However, the different filters are combined as "AND". That is, to be displayed a wagon has to match both the wagon type filter AND the wagon height filter.

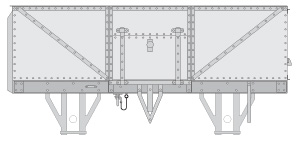

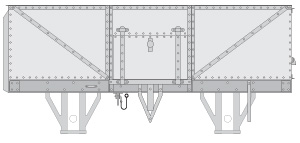

Filter wagon type:

Filter wagon height (no. of planks):

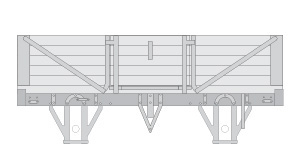

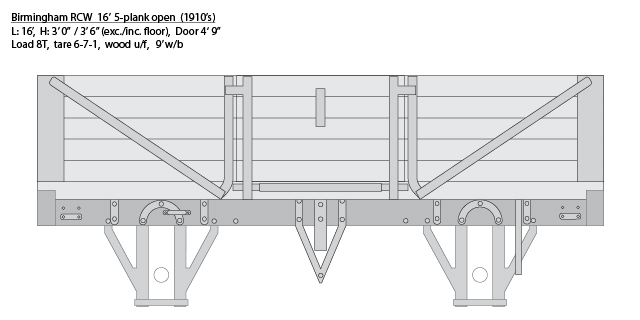

Birmingham RCW 16' 5-plank open

 Builder: Birmingham RCW Year: 1910s
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 16' Width: Unknown
Height (exc / inc curb rail): 3'0 / 3'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 6-7-1

Notes:

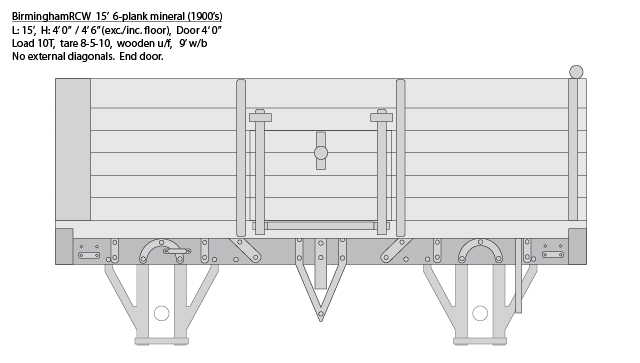

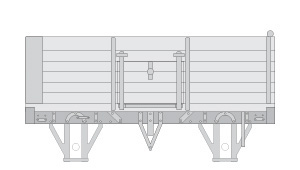

Birmingham RCW 15' 6-plank mineral

 Builder: Birmingham RCW Year: 1900s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: Internal
Length: 15' Width: Unknown
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 8-5-10

Notes:

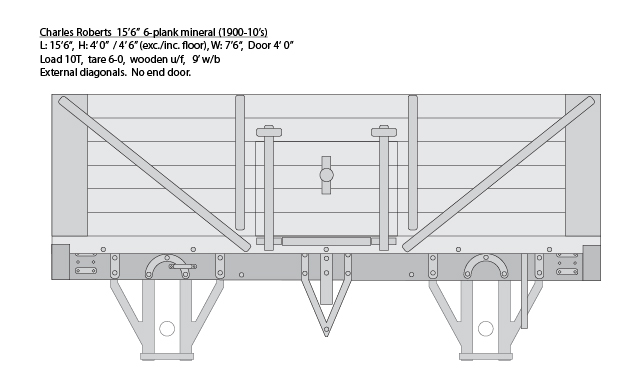

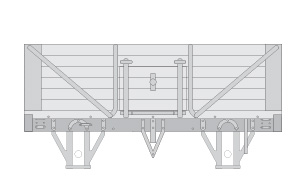

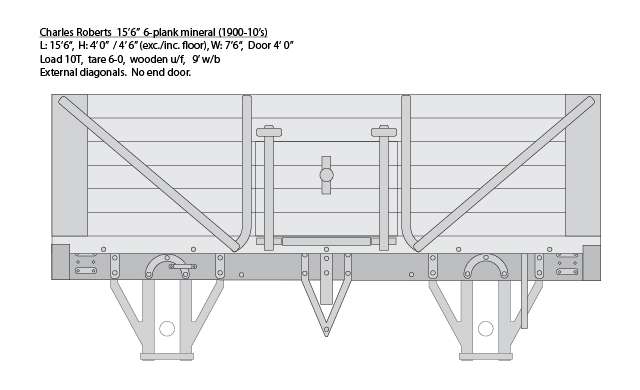

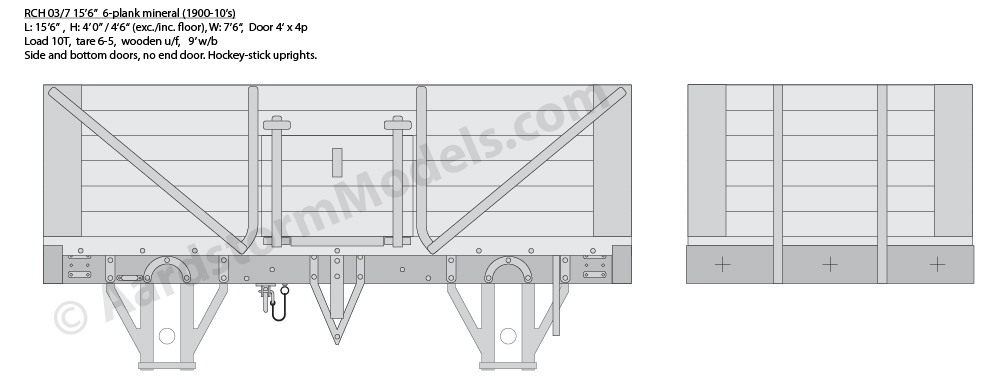

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

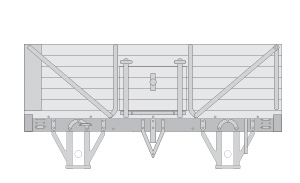

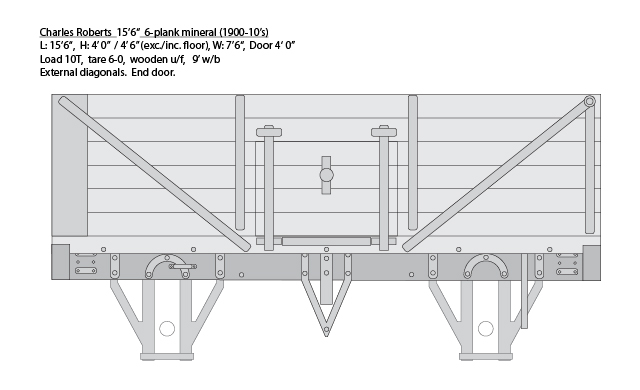

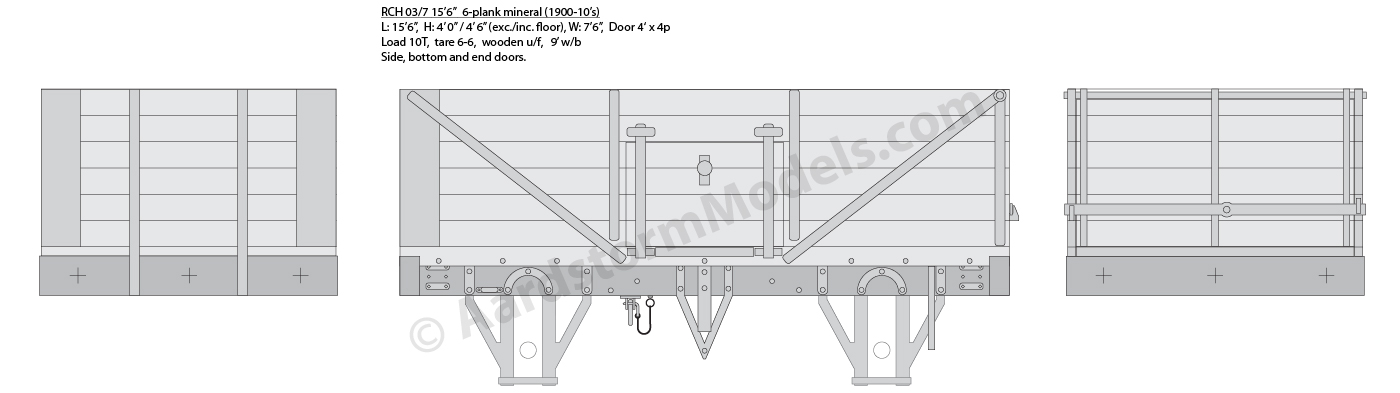

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 15'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

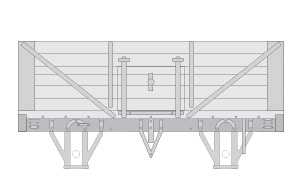

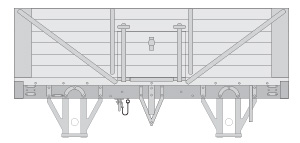

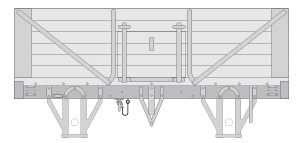

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

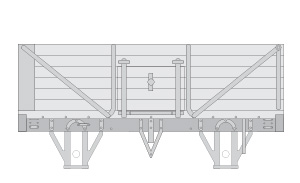

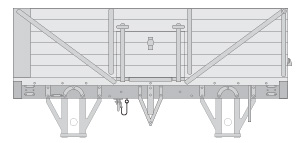

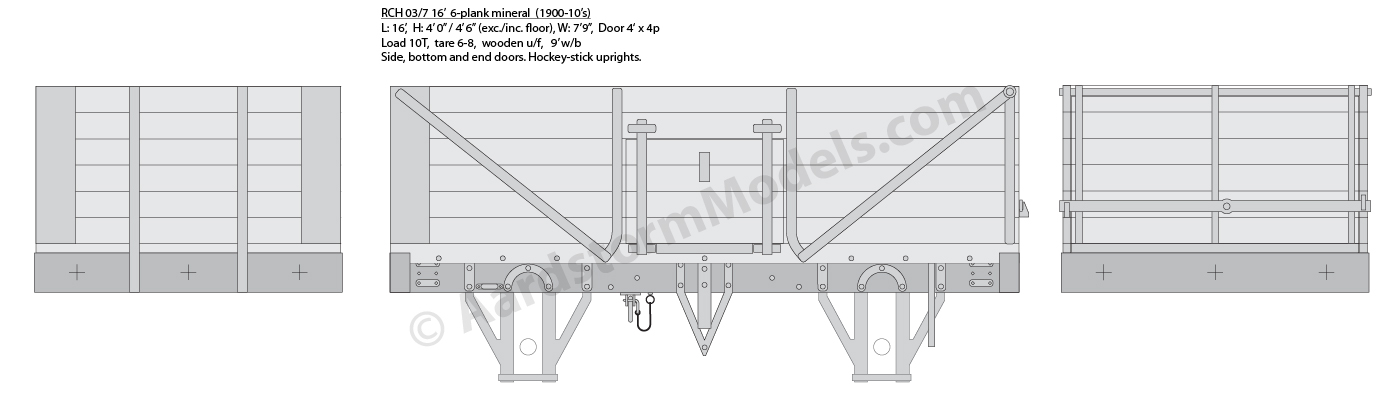

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

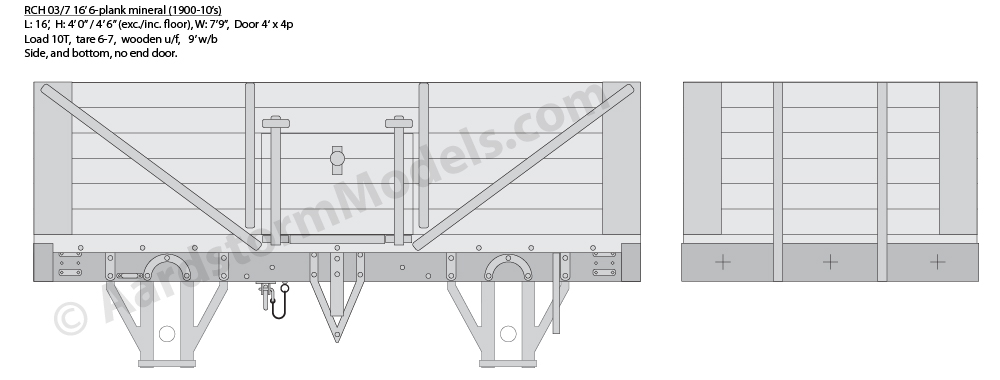

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16' Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-5

Notes:

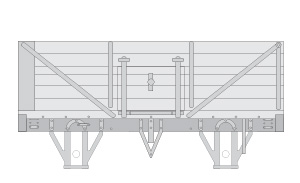

Charles Roberts 16' 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16' Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-5

Notes:

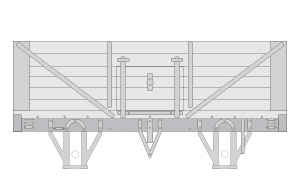

Charles Roberts 16'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 16'6 Width: 7'9
Height (exc / inc curb rail): 4'3 / 4'9 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

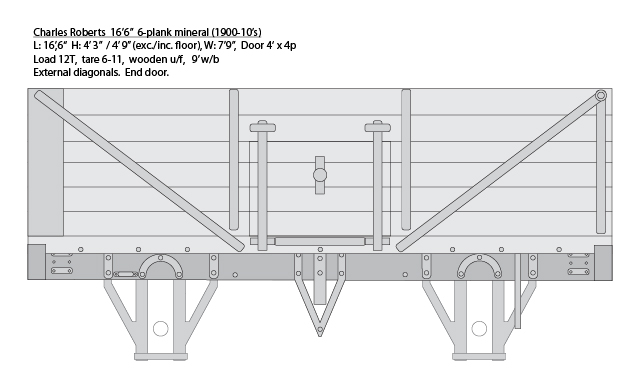

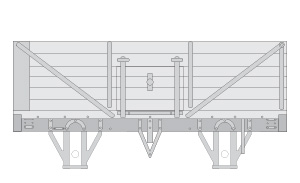

Charles Roberts 16'6 6-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16'6 Width: 7'9
Height (exc / inc curb rail): 4'3 / 4'9 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-11

Notes:

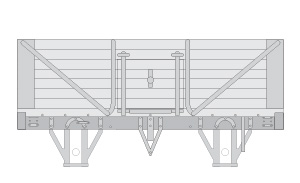

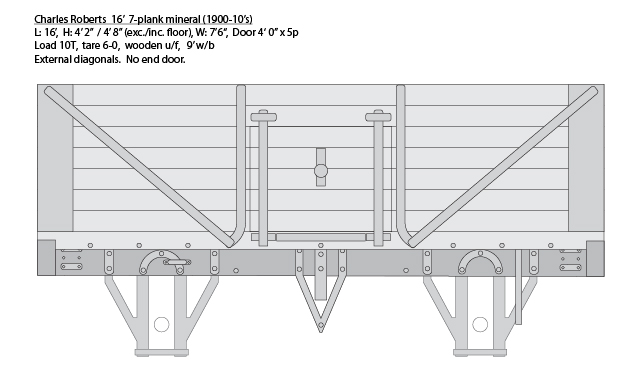

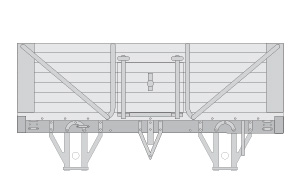

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

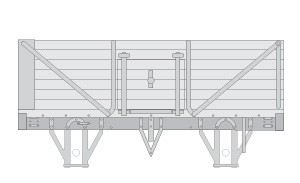

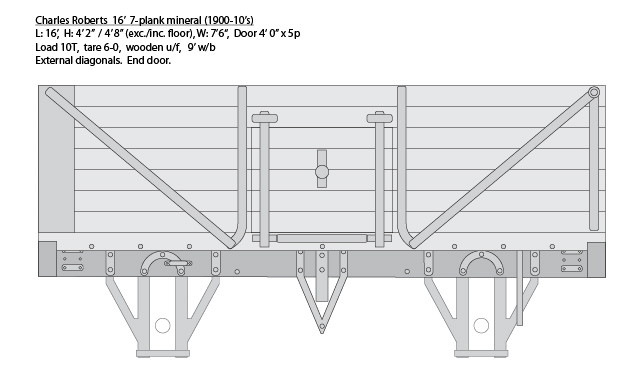

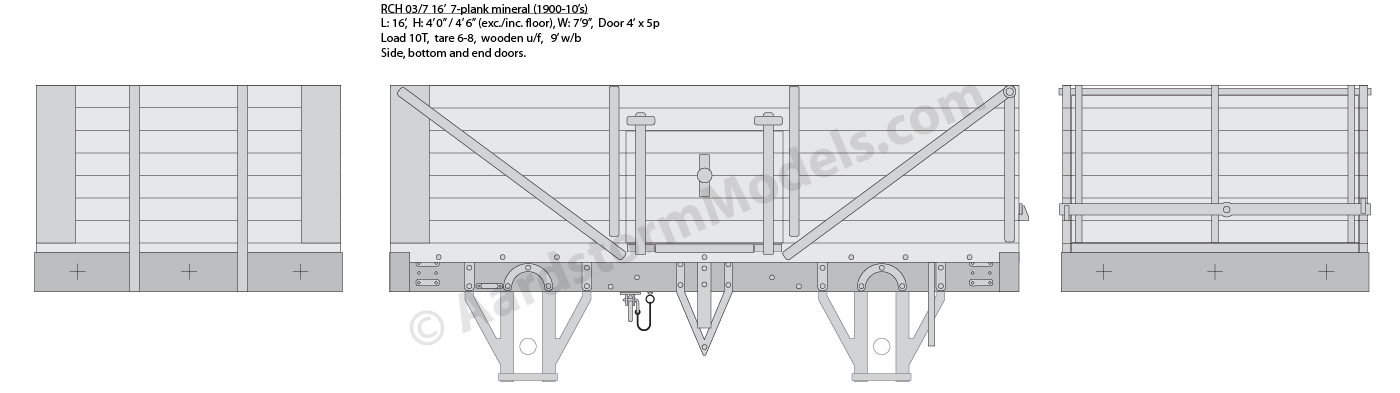

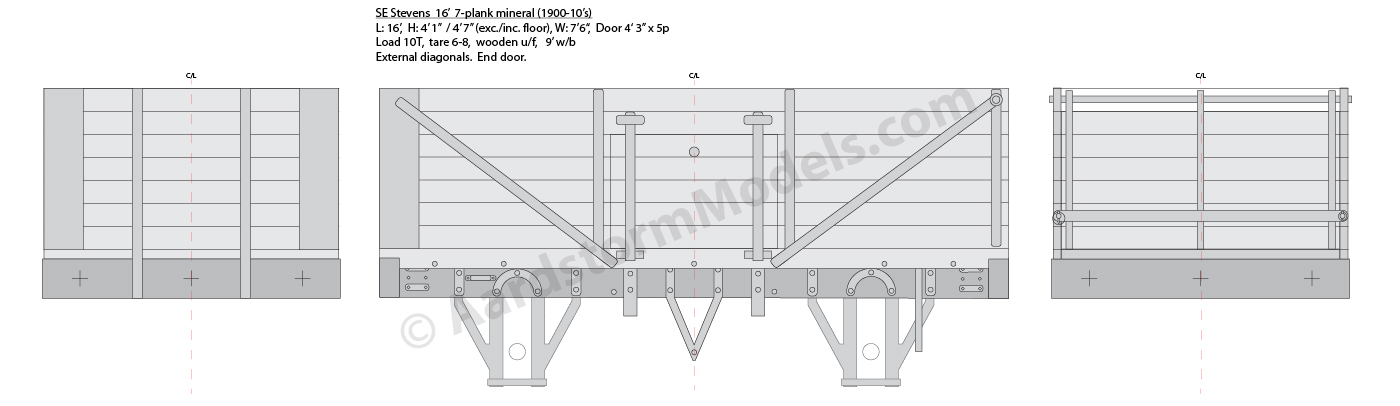

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

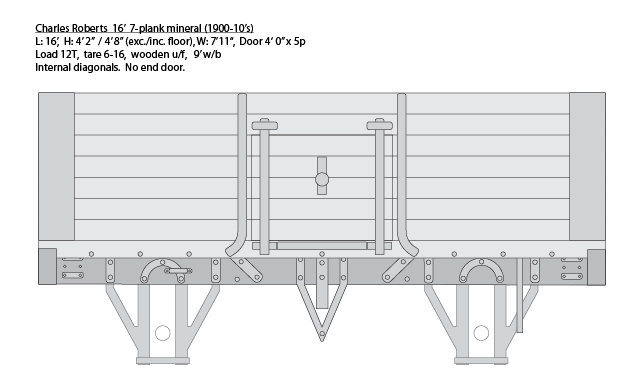

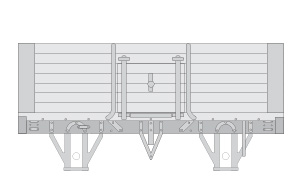

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

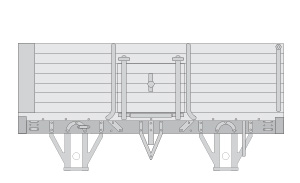

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

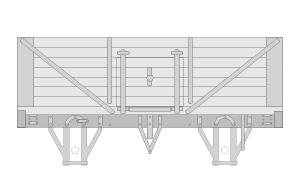

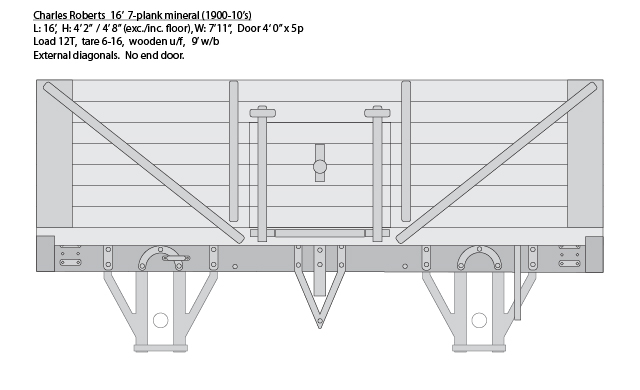

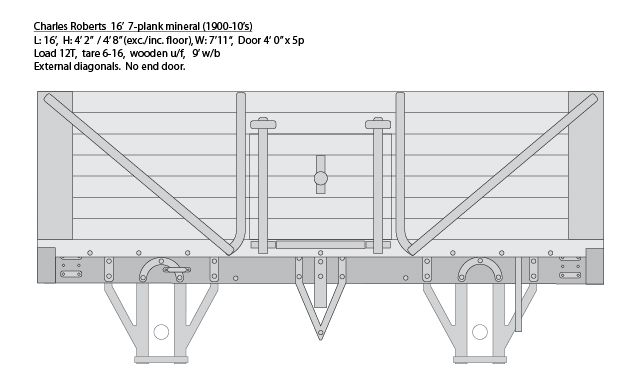

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

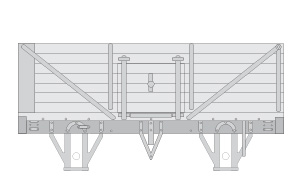

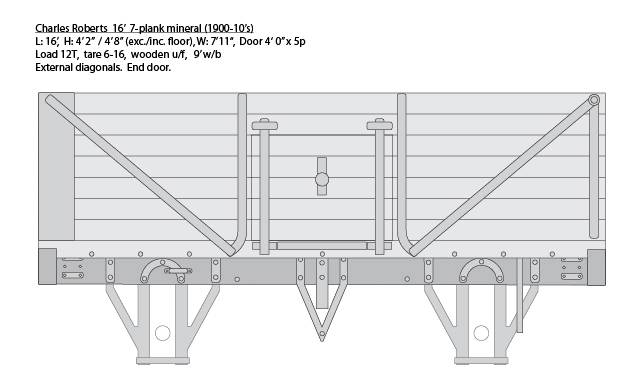

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

Charles Roberts 16' 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

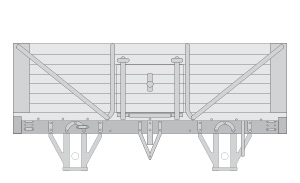

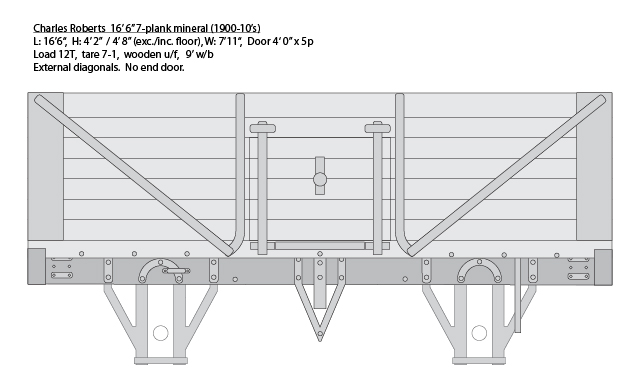

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

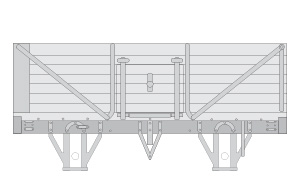

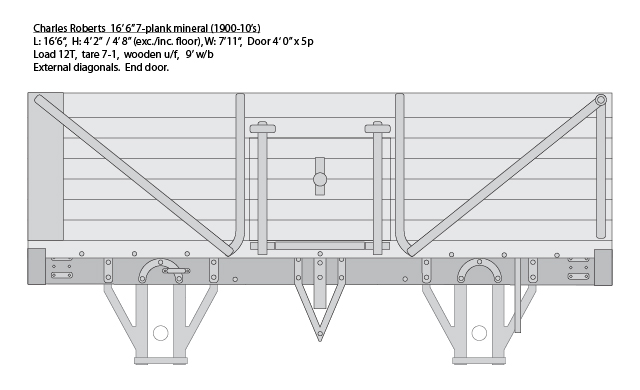

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

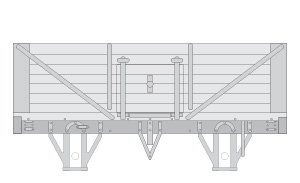

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1900s-1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-1

Notes:

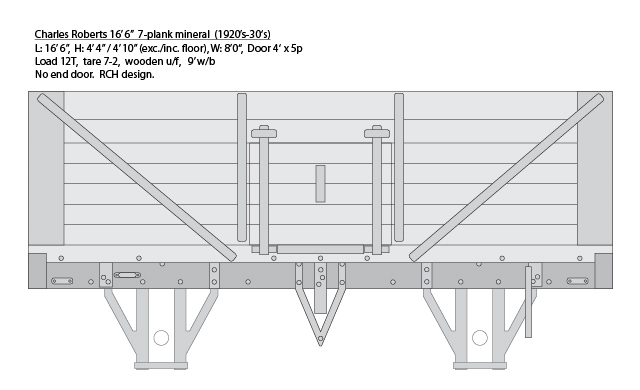

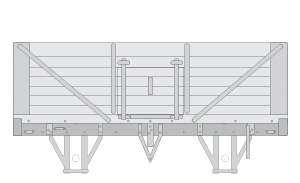

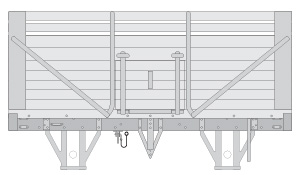

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design

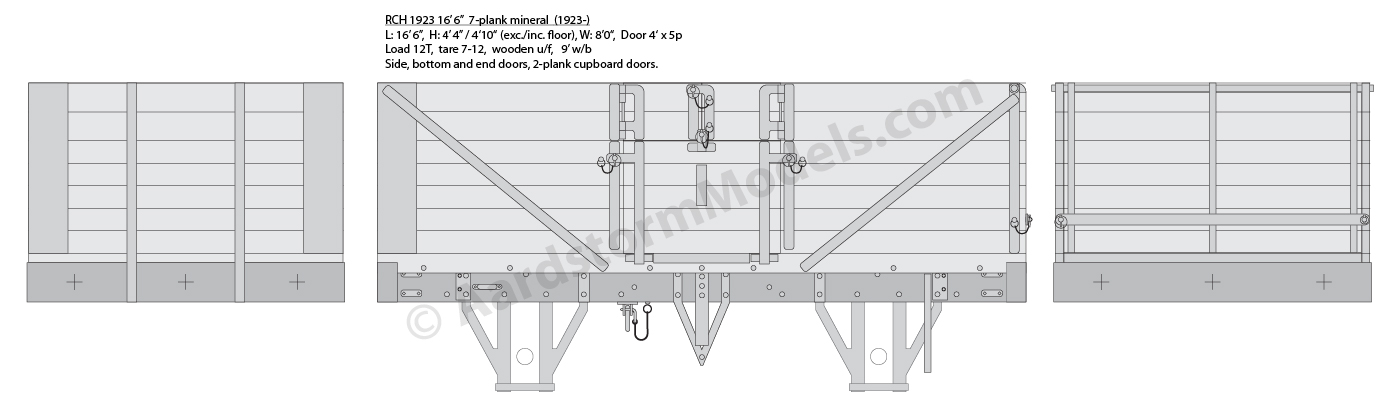

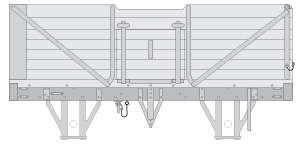

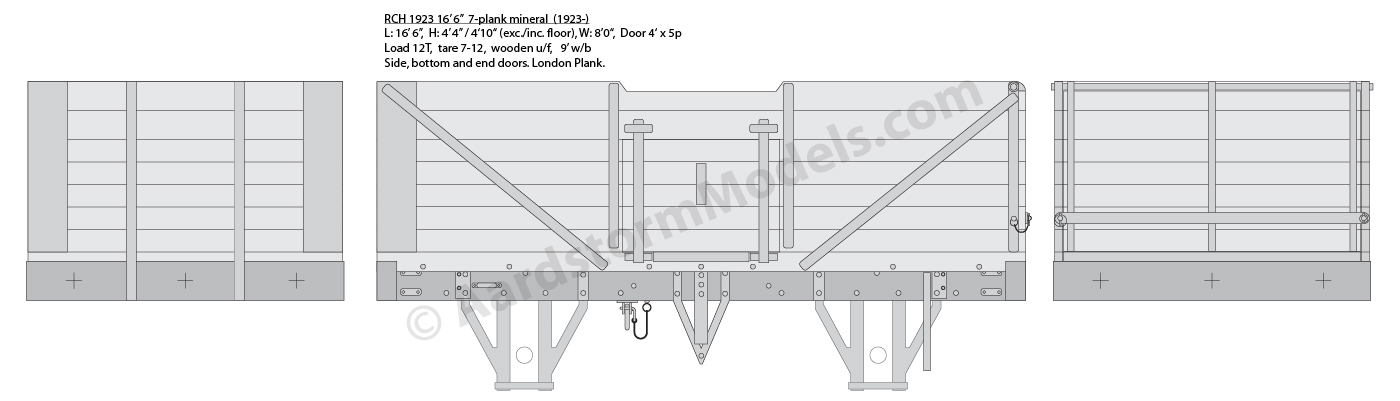

Charles Roberts 16'6 7-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design

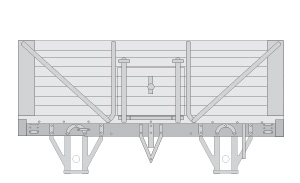

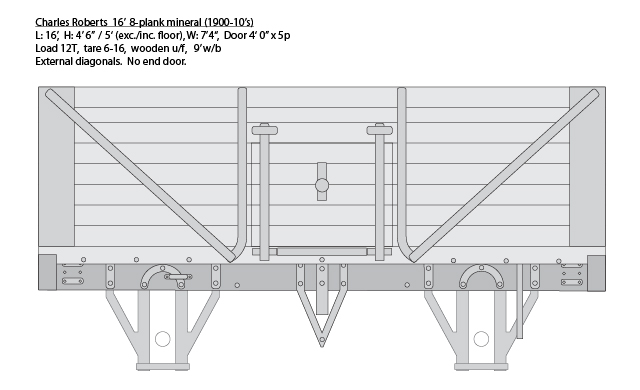

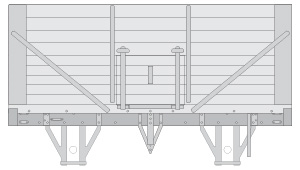

Charles Roberts 16 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16' Width: 7'4
Height (exc / inc curb rail): 4'6 / 5' Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

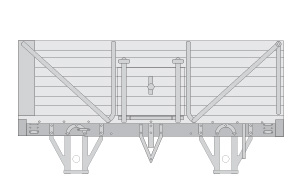

Charles Roberts 16 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16' Width: 7'4
Height (exc / inc curb rail): 4'6 / 5' Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes:

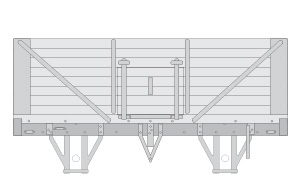

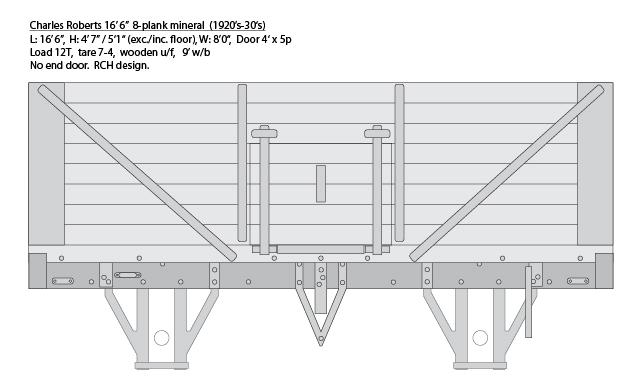

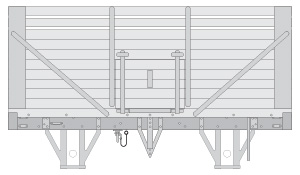

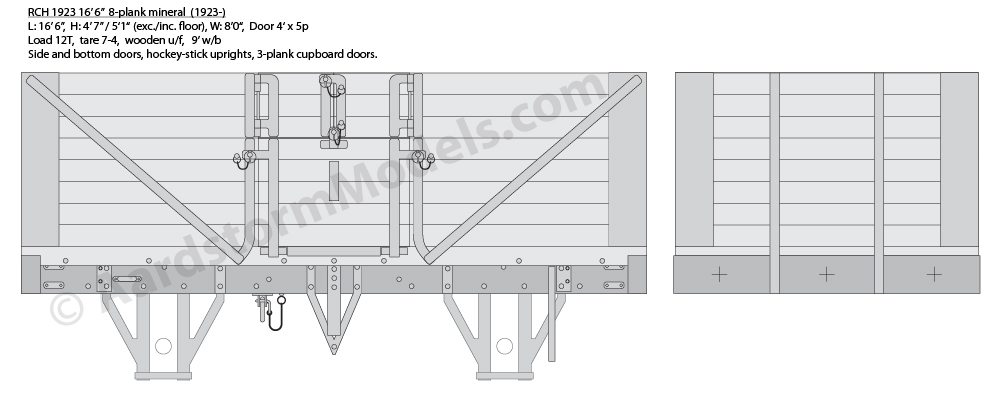

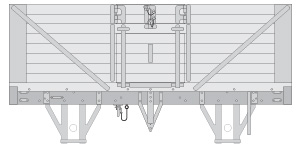

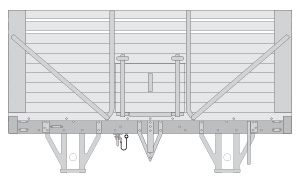

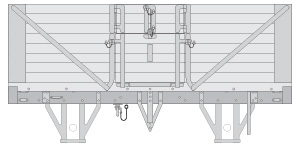

Charles Roberts 16'6 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: No
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: RCH design

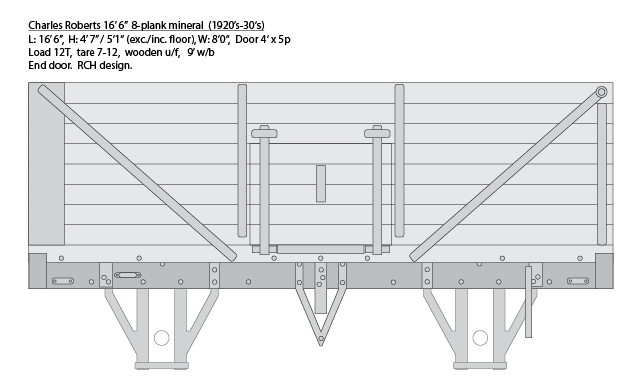

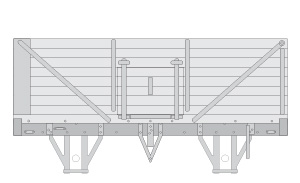

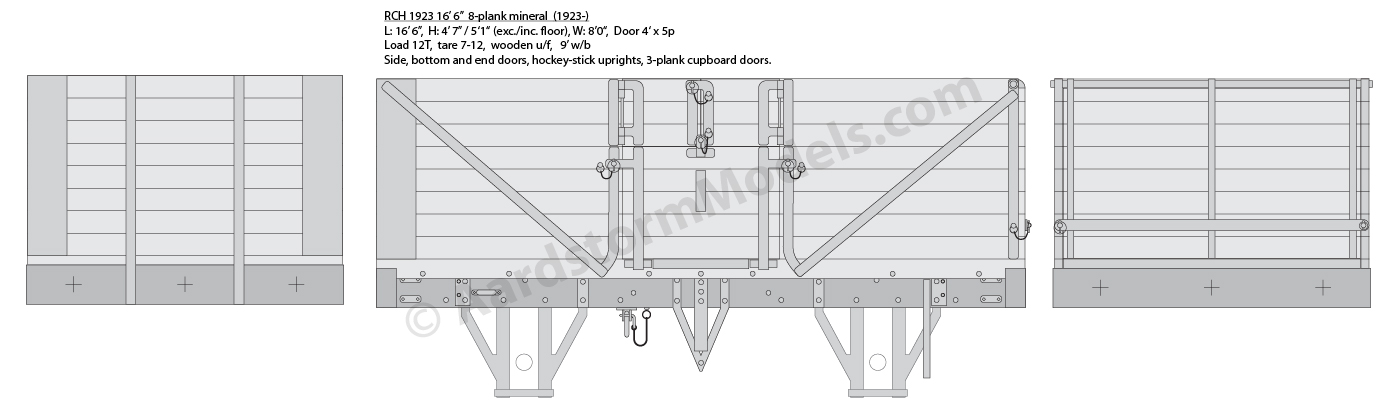

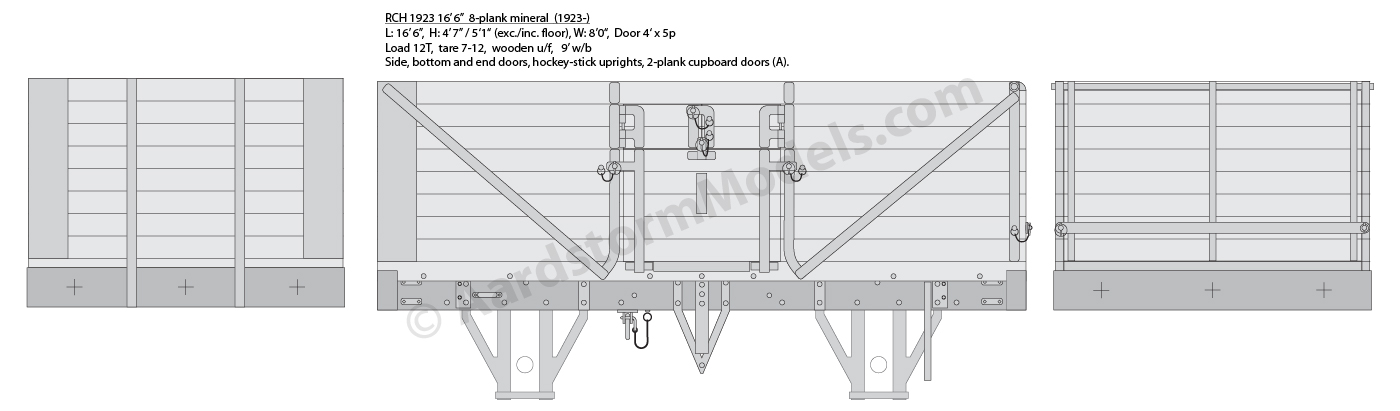

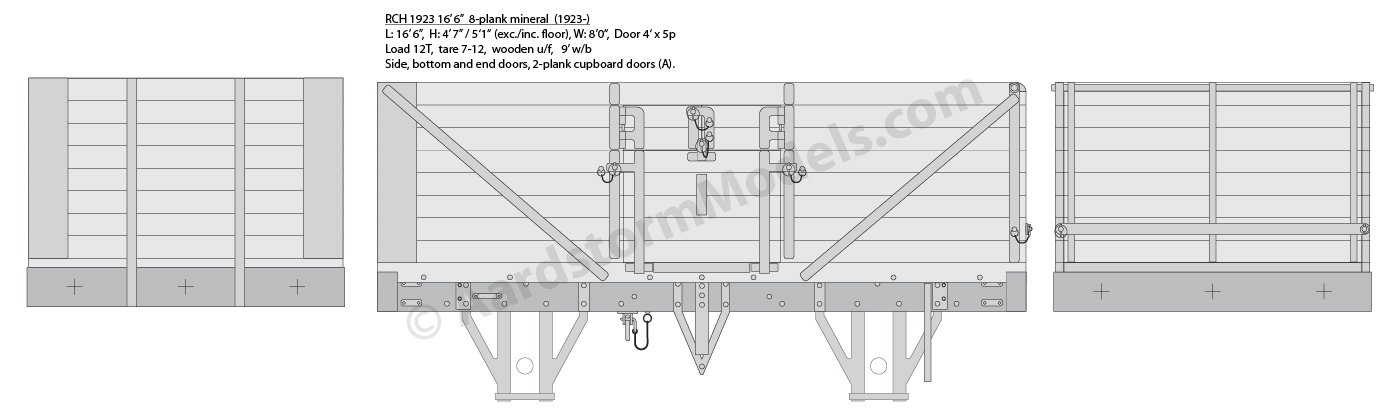

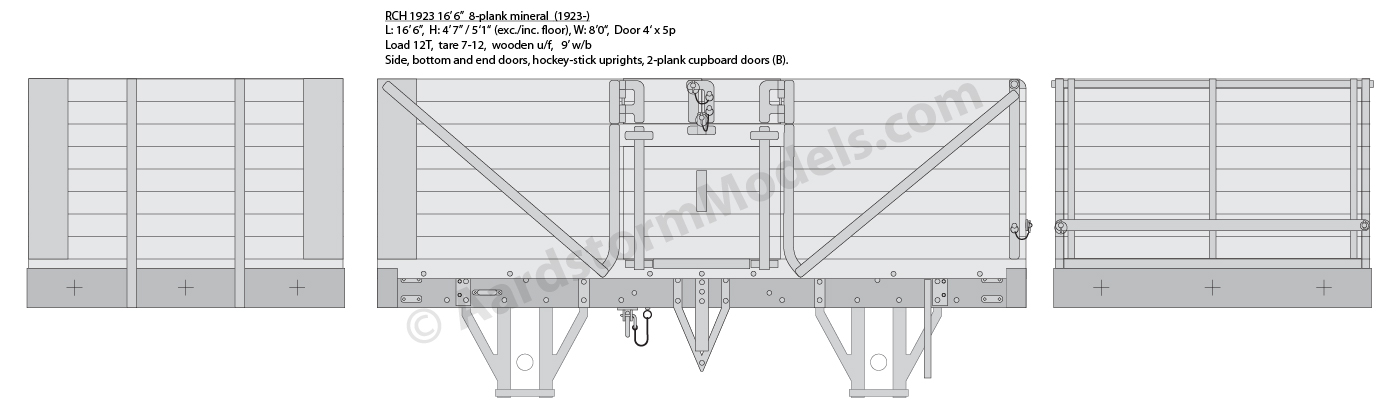

Charles Roberts 16'6 8-plank mineral

 Builder: Charles Roberts & Co Ltd Year: 1920s-1930s
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'0
Height (exc / inc curb rail): 4'7 / 5'1 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-4

Notes: RCH design

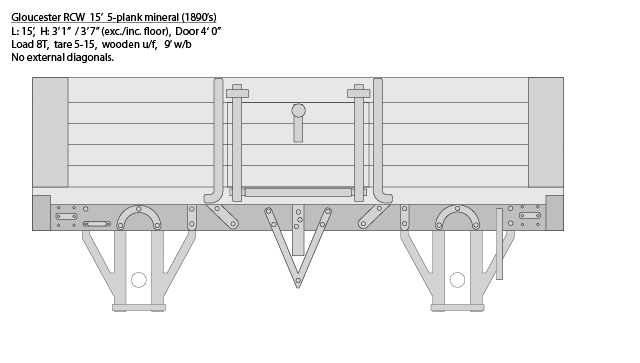

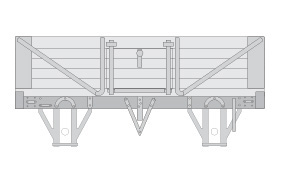

Gloucester RCW 15' 5-plank mineral

 Builder: Gloucester RCW Year: 1890s
Type: Mineral End Door: No
Height (planks): 5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 5-15

Notes:

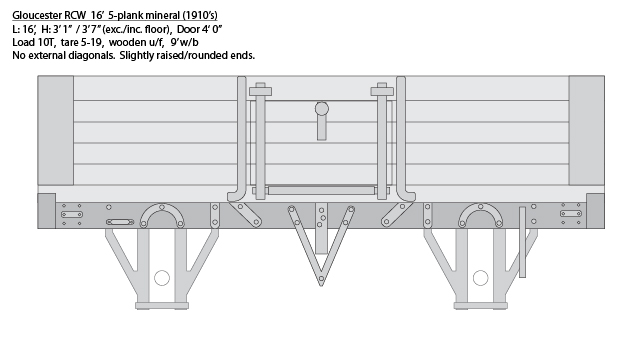

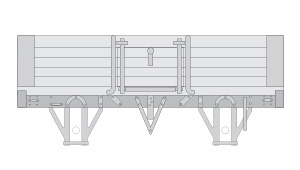

Gloucester RCW 16' 5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 5 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-19

Notes: Slightly raised ends with rounded top corners

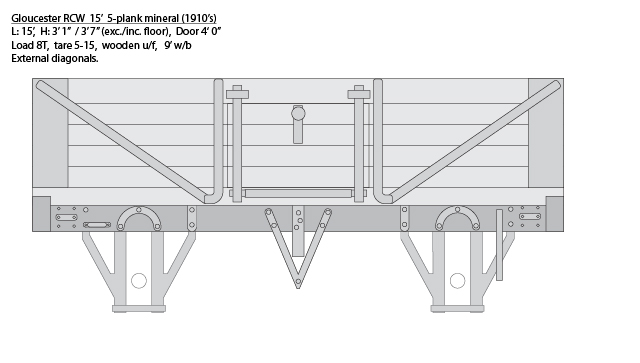

Gloucester RCW 15' 5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 5-15

Notes:

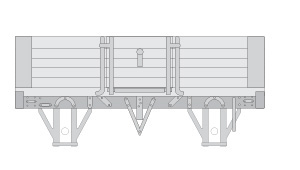

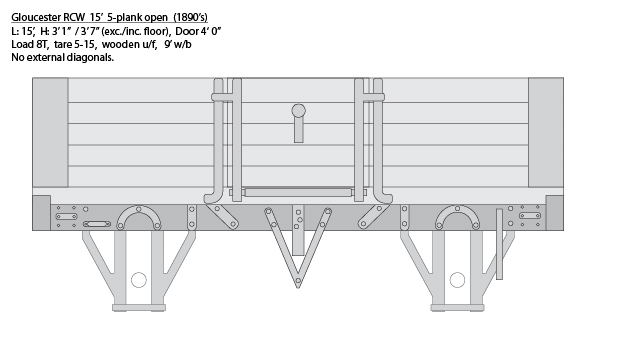

Gloucester RCW 15' 5-plank open

 Builder: Gloucester RCW Year: 1890s
Type: Open End Door: No
Height (planks): 5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 8T Tare Weight (typ.): 5-15

Notes:

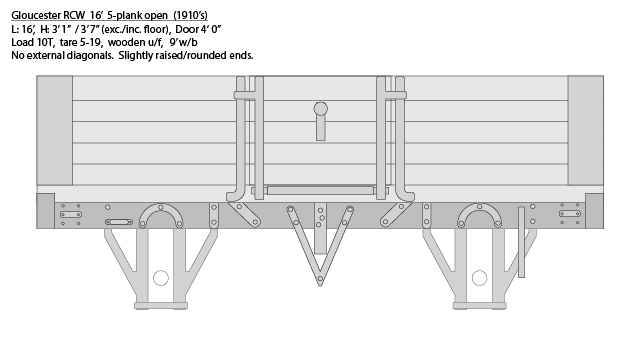

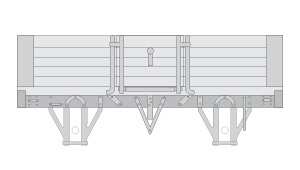

Gloucester RCW 16' 5-plank open

 Builder: Gloucester RCW Year: 1910s
Type: Open End Door: No
Height (planks): 5 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 3'1 / 3'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-19

Notes: Slightly raised ends with rounded top corners

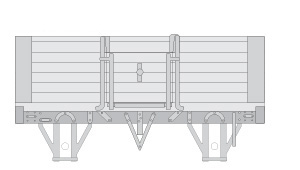

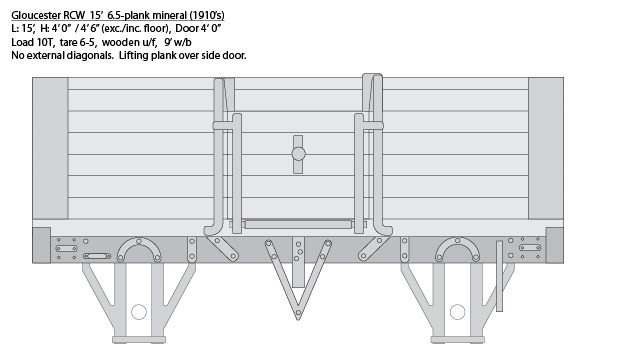

Gloucester RCW 15' 6.5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 6.5 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-5

Notes: Lifting section over side door

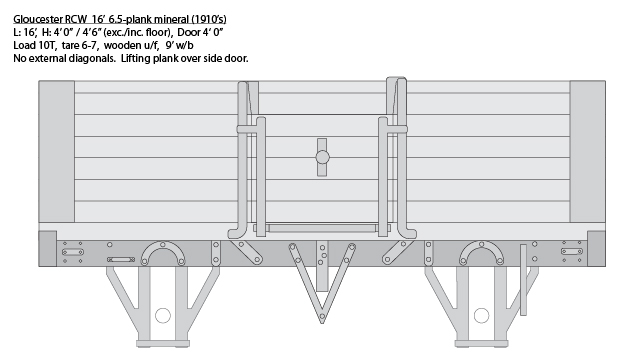

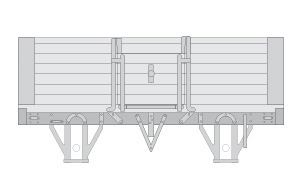

Gloucester RCW 16' 6.5-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 6.5 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-7

Notes: Lifting section over side door

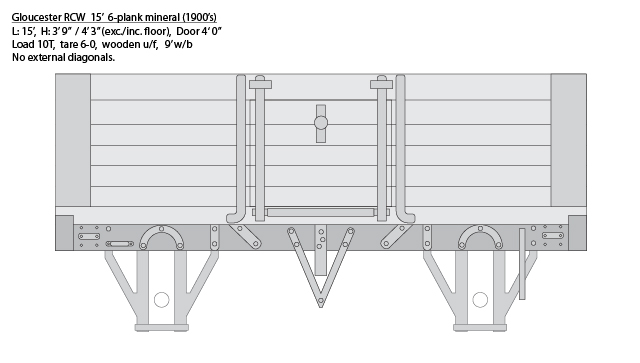

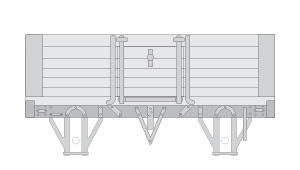

Gloucester RCW 15' 6-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'9 / 4'3 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-0

Notes:

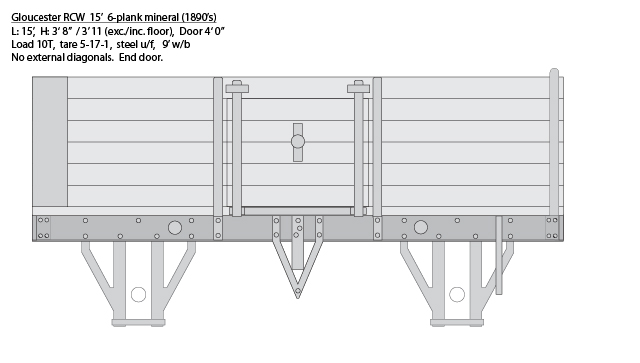

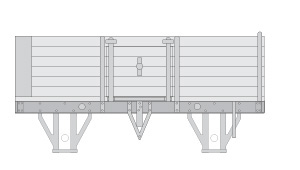

Gloucester RCW 15' 6-plank mineral

 Builder: Gloucester RCW Year: 1890s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 3'8 / 3'11 Side Door (w x ht): 4'0 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-17-1

Notes:

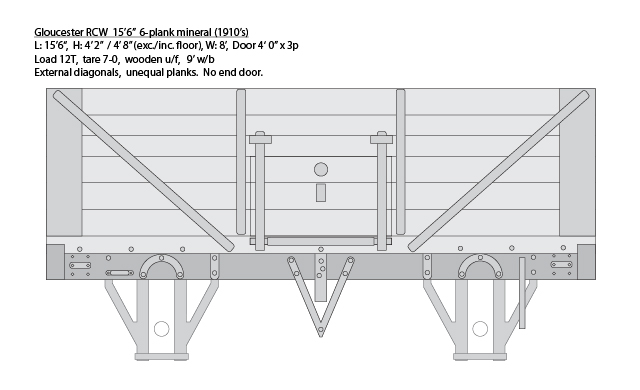

Gloucester RCW 15'6 6-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 3 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-0

Notes:

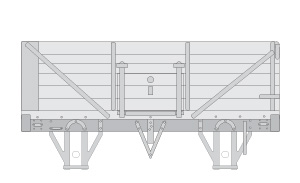

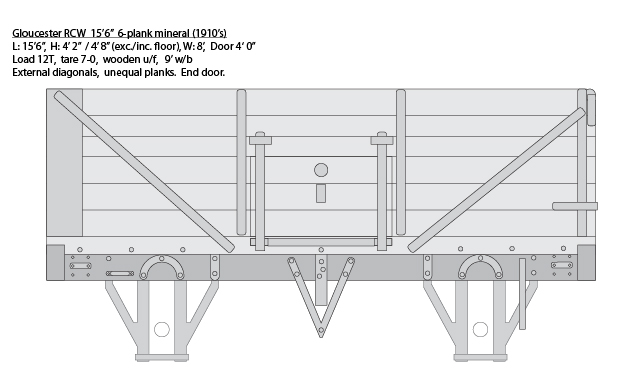

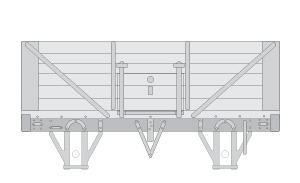

Gloucester RCW 15'6 6-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 15'6 Width: 8'
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 3 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-0

Notes:

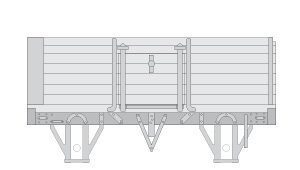

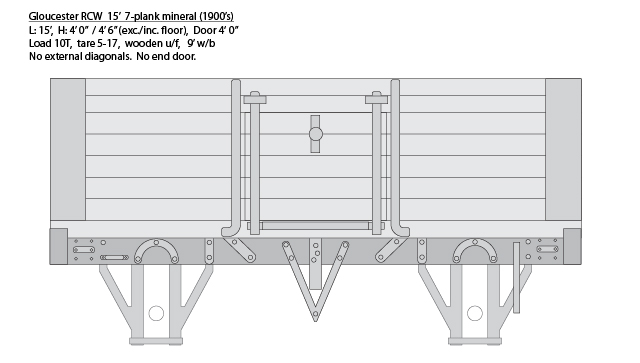

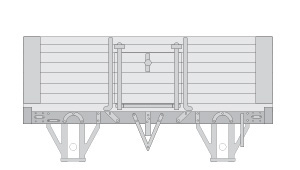

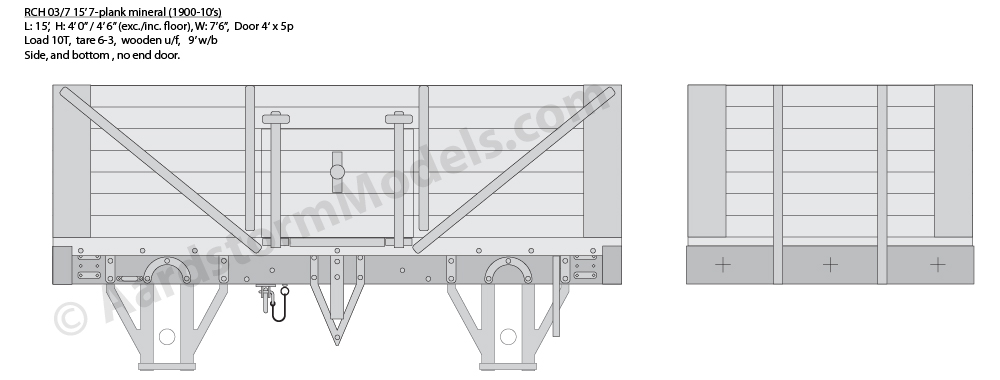

Gloucester RCW 15' 7-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 5-17

Notes:

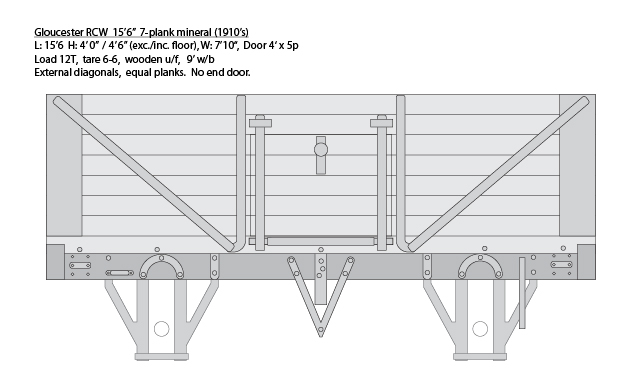

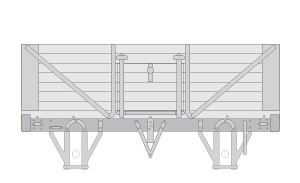

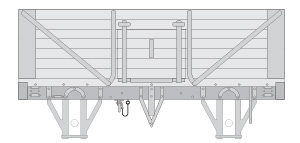

Gloucester RCW 15' 7-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 15'6 Width: 7'10
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-6

Notes:

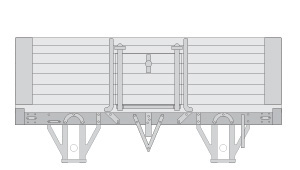

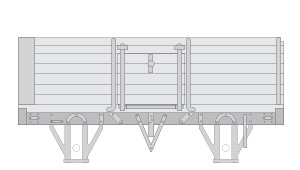

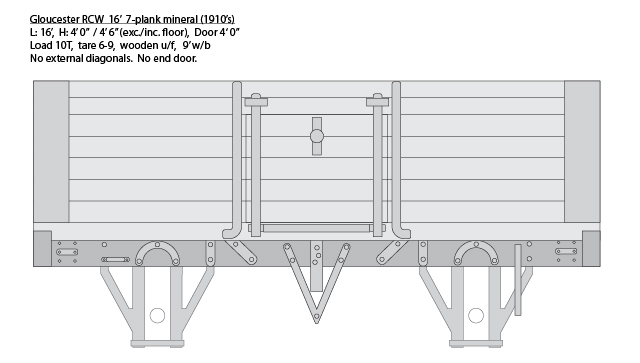

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-9

Notes:

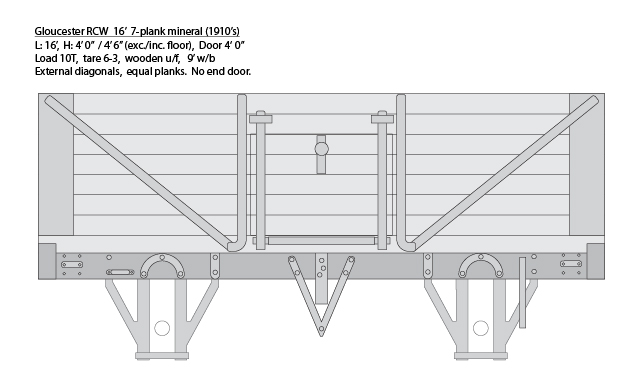

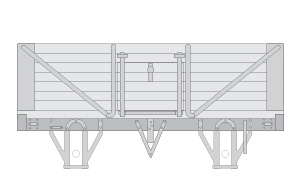

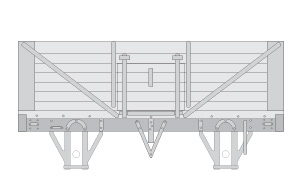

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-3

Notes:

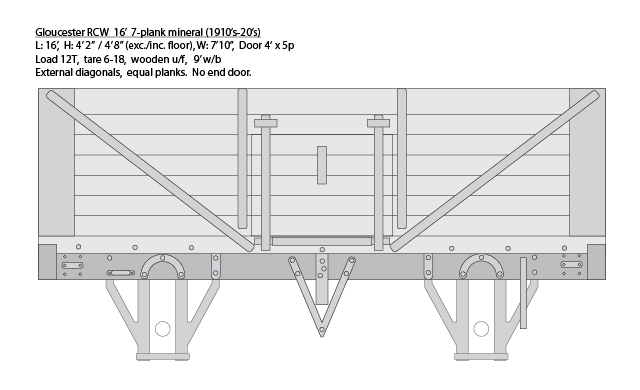

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s-20s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'10
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-18

Notes:

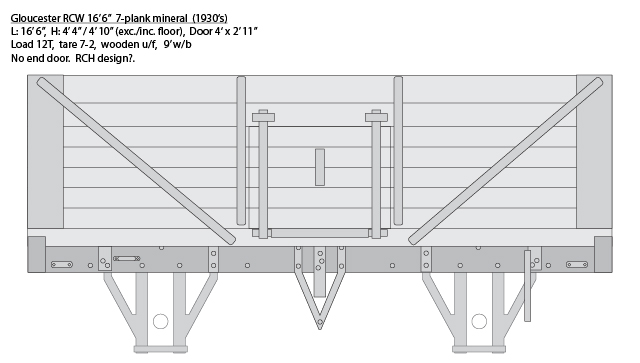

Gloucester RCW 16'6 7-plank mineral

 Builder: Gloucester RCW Year: 1930s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design?

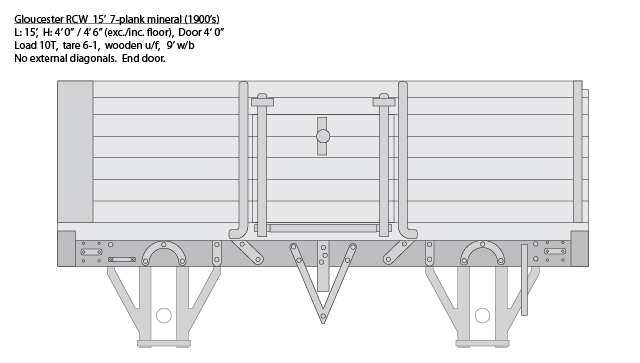

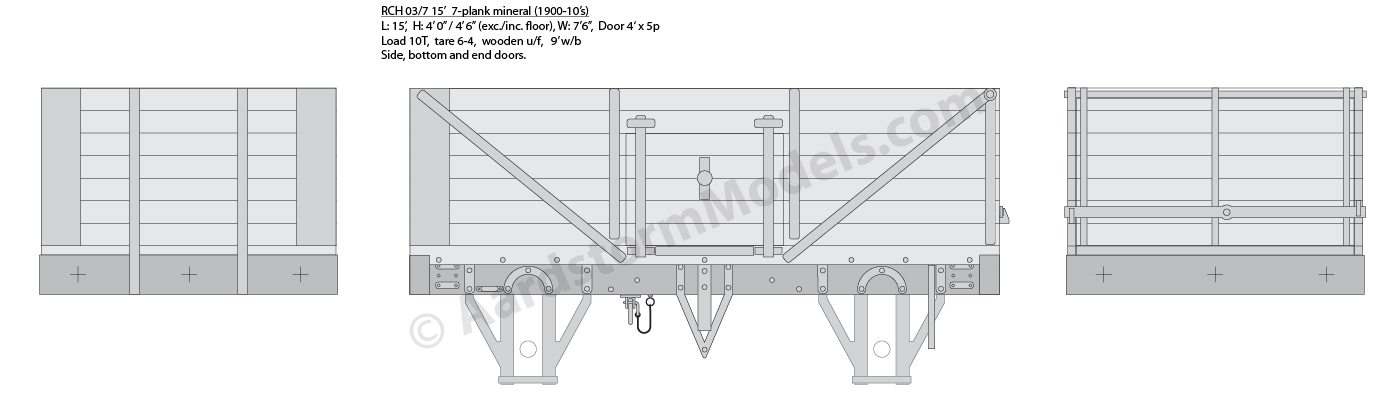

Gloucester RCW 15' 7-plank mineral

 Builder: Gloucester RCW Year: 1900s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: Internal
Length: 15' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-1

Notes:

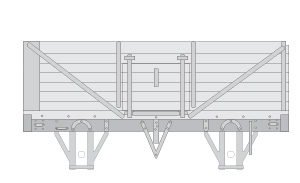

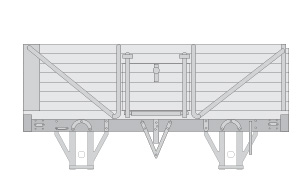

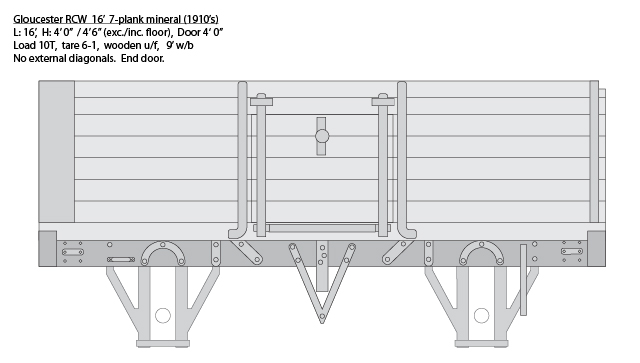

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: Internal
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-1

Notes:

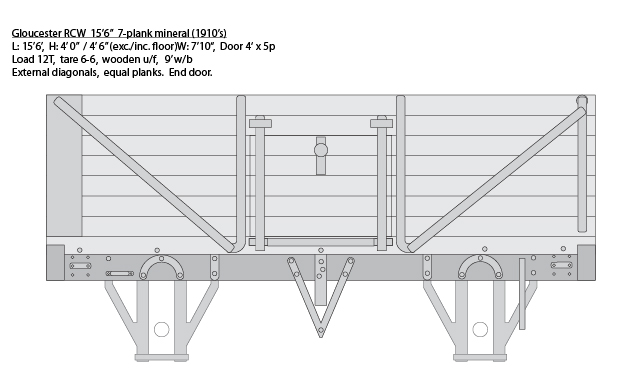

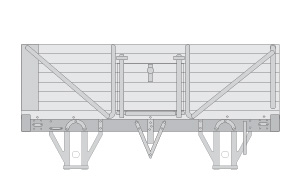

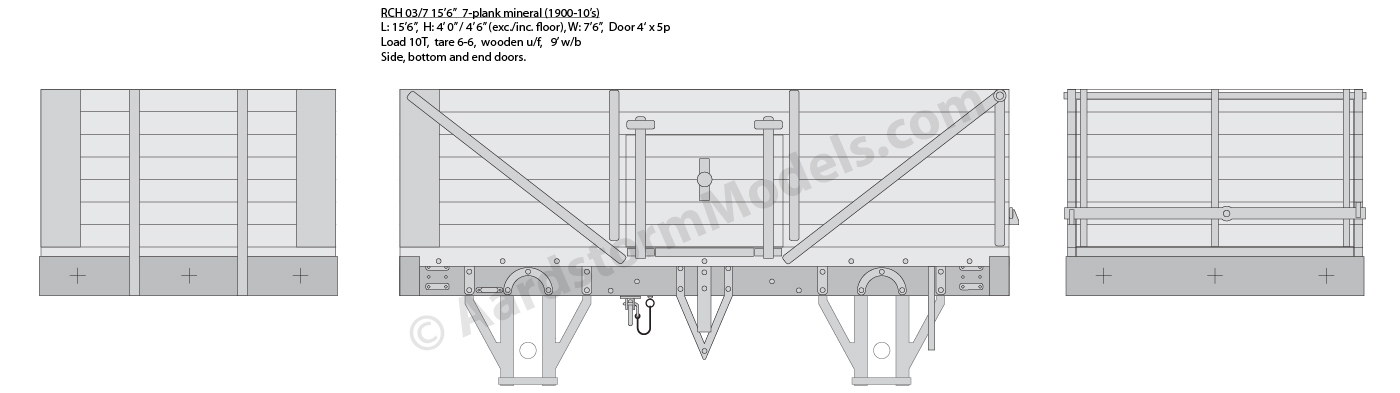

Gloucester RCW 15'6 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 15'6 Width: 7'10
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-6

Notes:

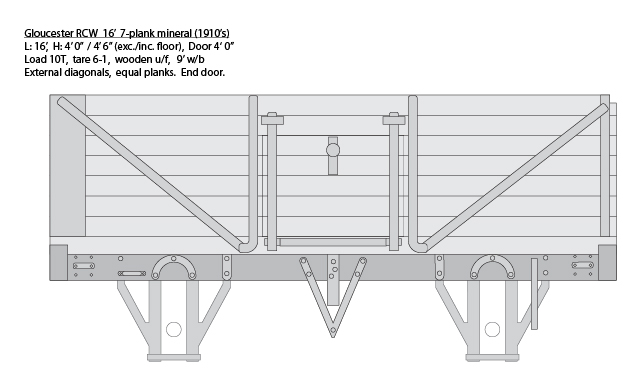

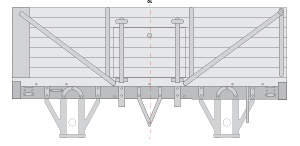

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'6
Height (exc / inc curb rail): 4'0 / 4'6 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 10T Tare Weight (typ.): 6-1

Notes:

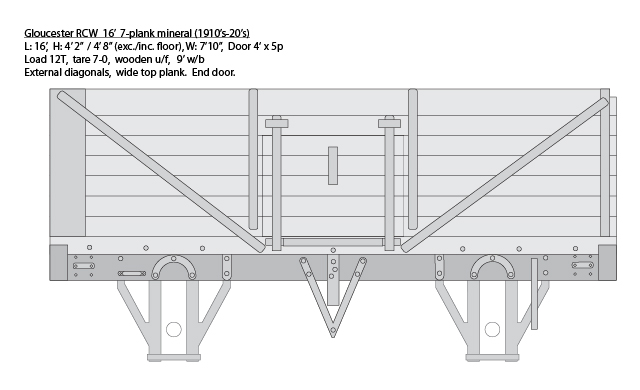

Gloucester RCW 16' 7-plank mineral

 Builder: Gloucester RCW Year: 1910s-20s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16' Width: 7'10
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-0

Notes:

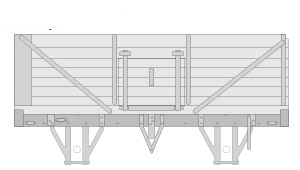

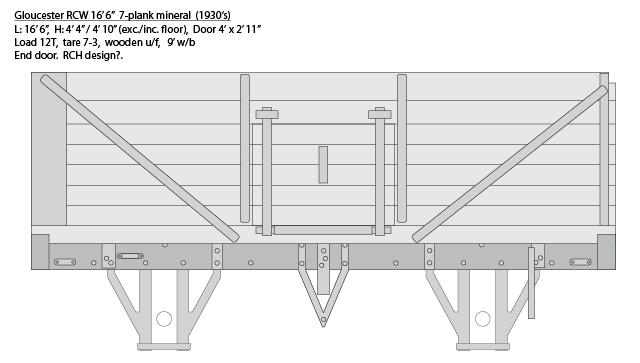

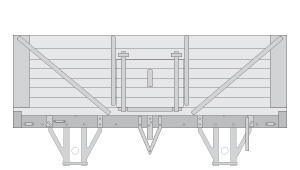

Gloucester RCW 16'6 7-plank mineral

 Builder: Gloucester RCW Year: 1930s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-3

Notes: RCH design?

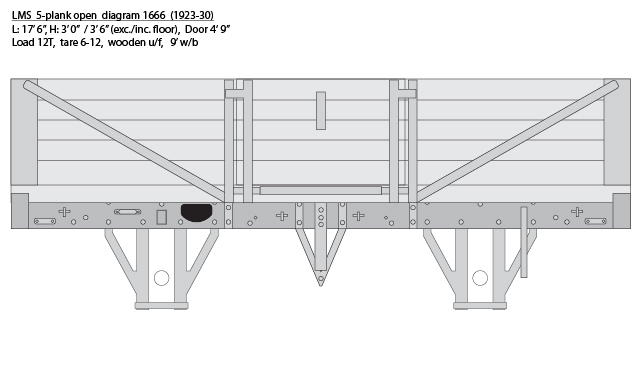

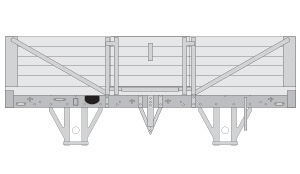

LMS 5-plank open diagram 1666

 Builder: LMS Year: 1923-30
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'0 / 3'6 Side Door (w x ht): 4'9 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-12

Notes:

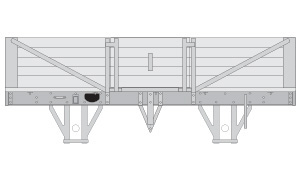

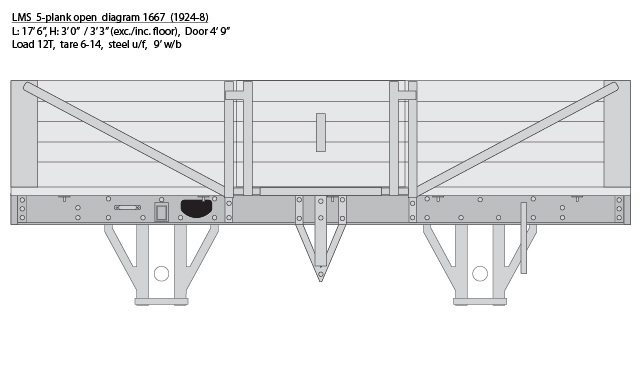

LMS 5-plank open diagram 1667

 Builder: LMS Year: 1924-8
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'0 / 3'3 Side Door (w x ht): 4'9 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-14

Notes:

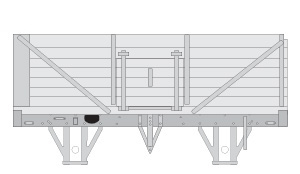

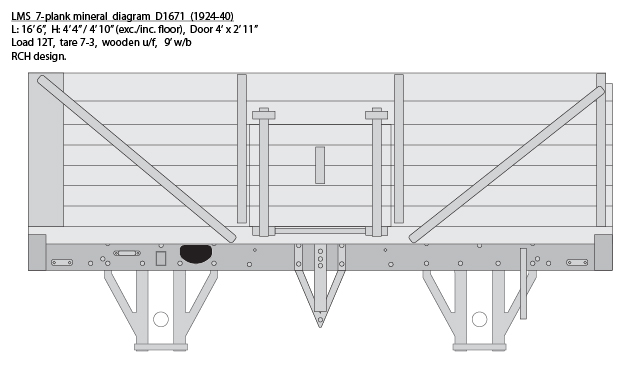

LMS 7-plank mineral diagram 1671

 Builder: LMS Year: 1924-40
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4'0 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-3

Notes: RCH design

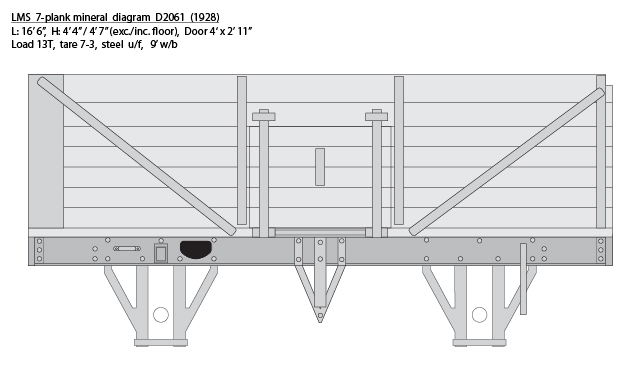

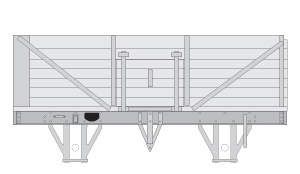

LMS 7-plank mineral diagram 2061

 Builder: LMS Year: 1928
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 13T Tare Weight (typ.): 7-3

Notes:

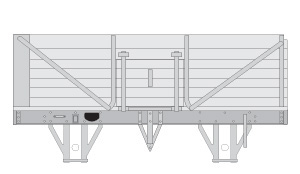

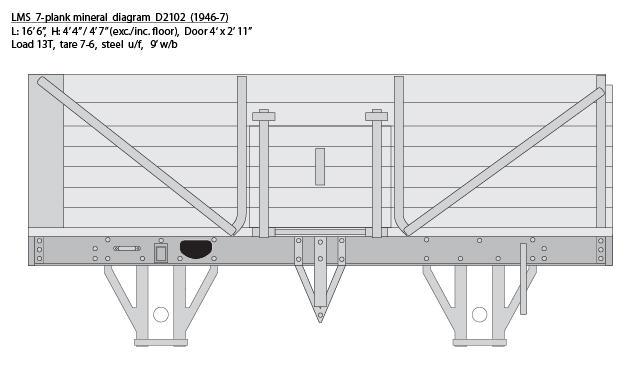

LMS 7-plank mineral diagram 2102

 Builder: LMS Year: 1946-7
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'7 Side Door (w x ht): 4'0 x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 13T Tare Weight (typ.): 7-6

Notes:

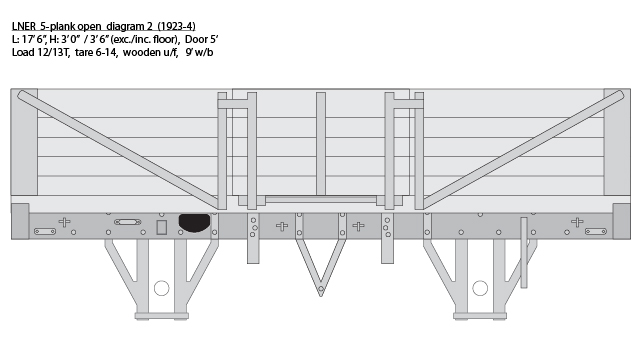

LNER 5-plank open diagram 2

 Builder: LNER Year: 1923-4
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'0 / 3'6 Side Door (w x ht): 5' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T/13T Tare Weight (typ.): 6-14

Notes:

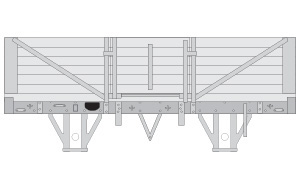

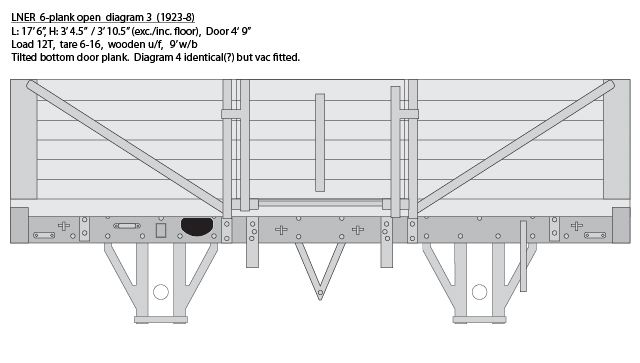

LNER 5-plank open diagram 3

 Builder: LNER Year: 1923-8
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'4.5 / 3'10.5 Side Door (w x ht): 4'9 x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-16

Notes: Tilted bottom door plank. Diagram 4 identical but vac. fitted.

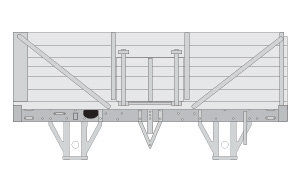

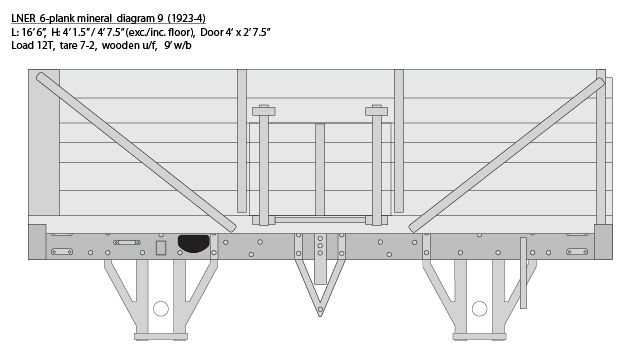

LNER 6-plank mineral diagram 9

 Builder: LNER Year: 1923-4
Type: Mineral End Door: Yes
Height (planks): 6 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'1.5 / 4'7.5 Side Door (w x ht): 4' x 4 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes:

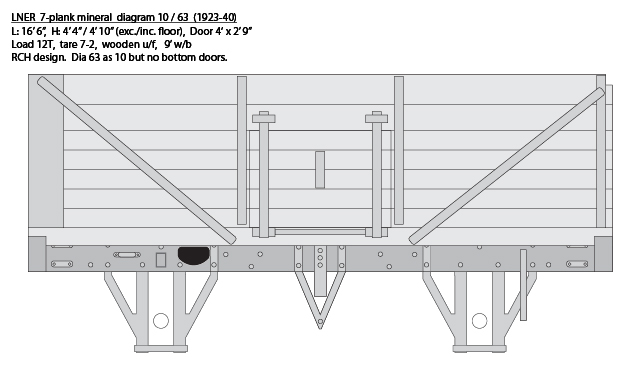

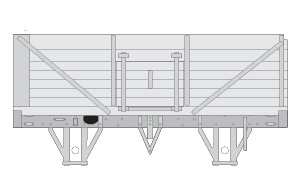

LNER 7-plank mineral diagram 10

 Builder: LNER Year: 1923-40
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH design. Diagram 63 identical but no bottom doors.

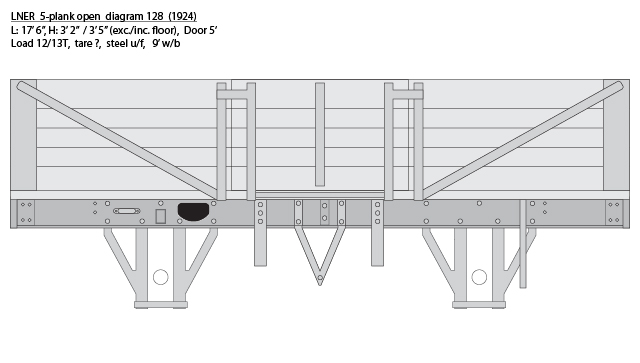

LNER 5-plank open diagram 128

 Builder: LNER Year: 1924
Type: Open End Door: No
Height (planks): 5 Diagonals: External
Length: 17'6 Width: 8'
Height (exc / inc curb rail): 3'2 / 3'5 Side Door (w x ht): 5' x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 12T/13T Tare Weight (typ.): Unknown

Notes:

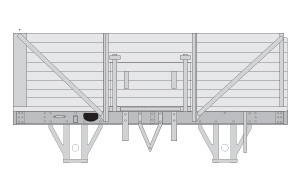

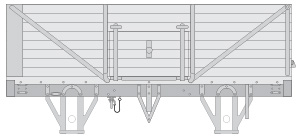

LNER 8-plank mineral diagram 192

 Builder: LNER Year: 1944
Type: Mineral End Door: Yes
Height (planks): 8 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'5.5 / 4'8.5 Side Door (w x ht): 4' x 5 planks
Underframe: Steel Wheelbase: 9'
Load Weight: 13T Tare Weight (typ.): 6-7

Notes: Built by SR.

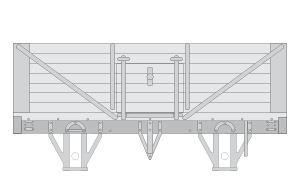

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1900s-10s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-15

Notes:

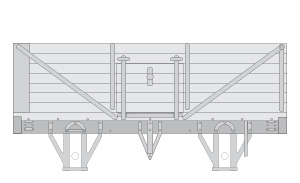

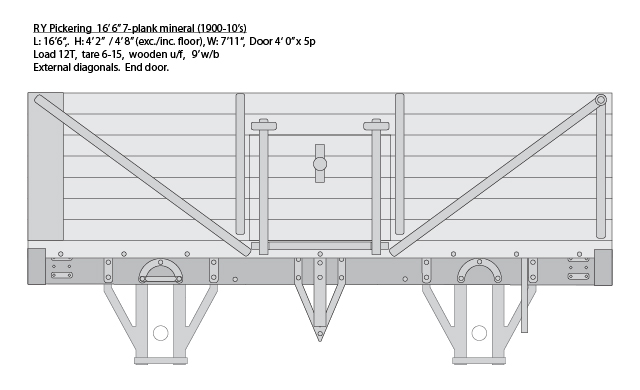

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1900s-10s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 7'11
Height (exc / inc curb rail): 4'2 / 4'8 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 6-15

Notes:

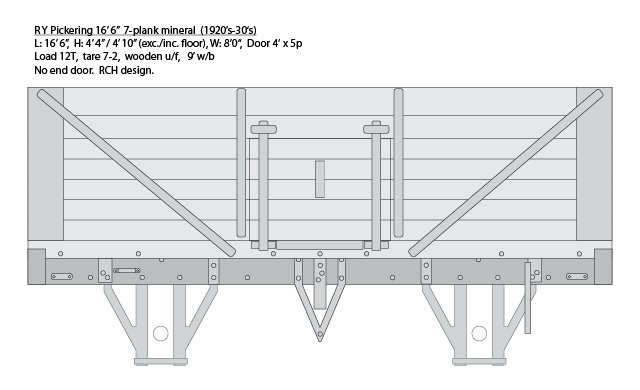

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1920s-30s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

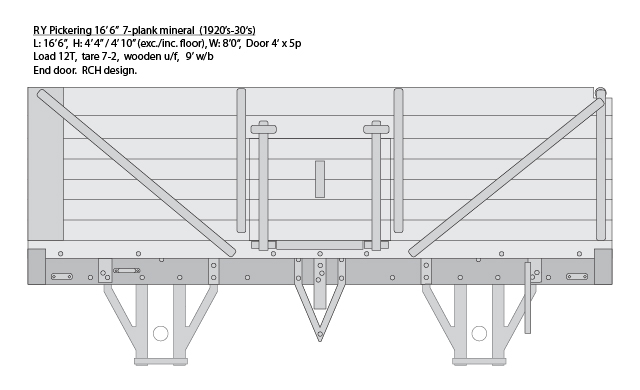

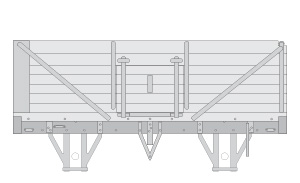

R Y Pickering 16'6 7-plank mineral

 Builder: R Y Pickering & Co. Ltd. Year: 1920s-30s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

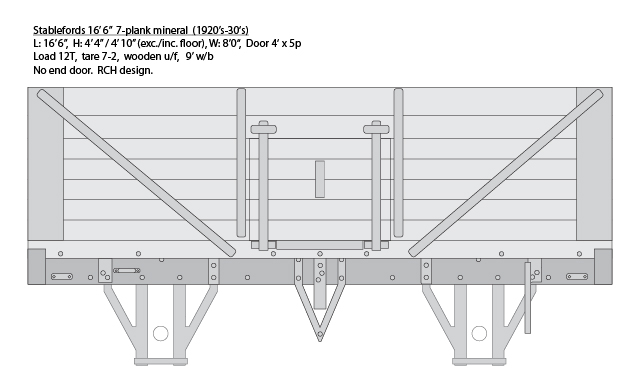

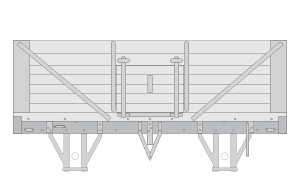

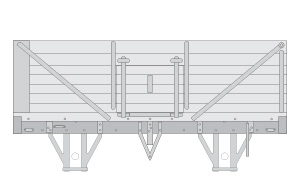

Stableford 16'6 7-plank mineral

 Builder: Stableford Carriage & Wagon Co. Year: 1920s-30s
Type: Mineral End Door: No
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design

Stableford 16'6 7-plank mineral

 Builder: Stableford Carriage & Wagon Co. Year: 1920s-30s
Type: Mineral End Door: Yes
Height (planks): 7 Diagonals: External
Length: 16'6 Width: 8'
Height (exc / inc curb rail): 4'4 / 4'10 Side Door (w x ht): 4' x 5 planks
Underframe: Wood Wheelbase: 9'
Load Weight: 12T Tare Weight (typ.): 7-2

Notes: RCH Design
